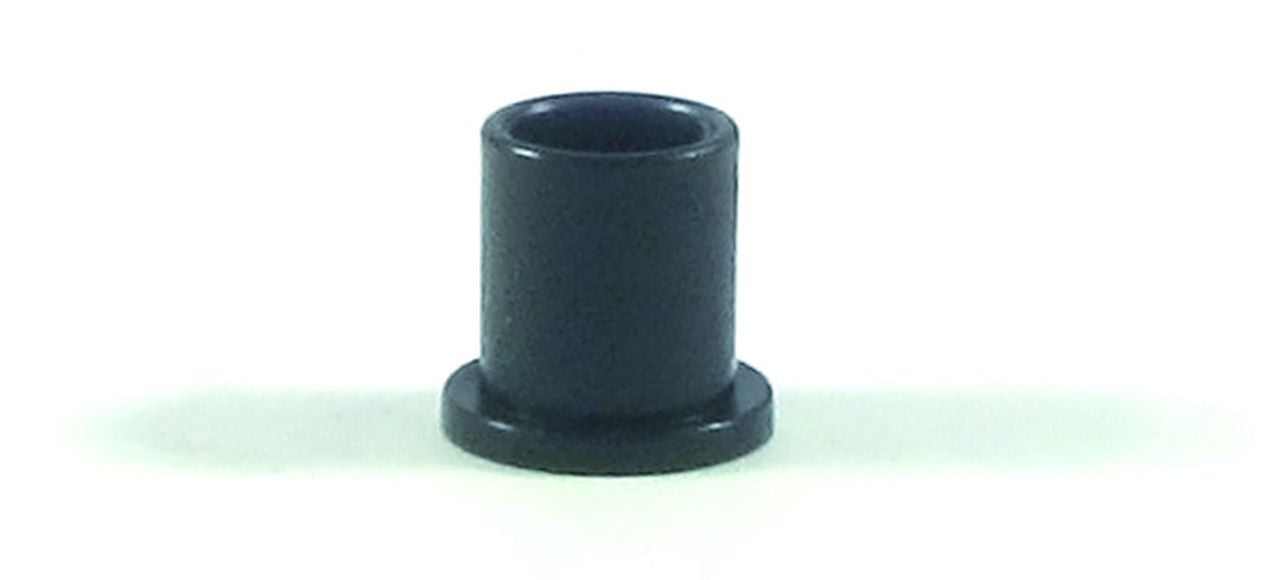

MTD NYLON WHEEL BUSH 1" HT X 5/8" ID X 13/16" OD

Non-Genuine Cub Cadet, MTD, White Chassis, Wheel And Steering Arm Nylon Bushing

Cub Cadet 741-0487, 741-0487A, 741-0487AP, 741-0487C, 941-0487AMTD 741-0487, 741-0487A, 741-0487AP, 741-0487C, 941-0487AWhite 741-0487, 741-0487A, 741-0487AP, 741-0487C, 941-0487A

1"

25.4 mm

5/8"

15.875 mm

13/16"

20.637 mm

54” (1372 mm) cut Cub Cadet Pro Z 100 EFI, 154-S (model 53AWEFJA330 year 2018)zero turn radius (ZTR) ride-on models as the deck wheel bushes.

26” (660 mm) cut MTD 5/26 (model 137-511-670 year 1987) and MTD Yard-Man 5/26(model 137-511-662 year 1987) ride-on lawn mower models as a front wheel bushing /bearing.

30” (770 mm) cut MTD 11/30 (model 137-506-670 year 1987), and MTD Yard Machines(model 13AL450C670 year 1997) ride-on lawn mower models as a front wheel bushing /bearing.

32” (813 mm) cut MTD 11/32 (model 138-342-670 year 1988 and model 139-332-670year 1989) ride-on lawn mower models as a front wheel bushing / bearing.

38” (965 mm) cut MTD Yard Machines (model 13AA660F670 year 2002, model13AM678F670 year 2002, model 13B1662F670 years 2003 to 2004 and model 13BM688F670years 2003 to 2004) and MTD Yard-Man (model 13AM693F671 year 2001 and model13AM694F671 year 1999) ride-on lawn mower models as a deck lift bushing.

38” (965 mm) cut MTD 11/38 (model 139-632-670 year 1989), 12/38 (model131-650F670 year 1991, model 132-660F670 year 1992 and model 138-652-670 year1988), MTD Yard Machines (model 139-652-670 year 1989, model 13A3662F670 year 2002,model 13AH450F670 year 1998, model 13AH451F670 year 1998, model 13AH660F670 year2001 and model 13AM475F670 year 1998) and MTD Yard-Man (model 138-655-662 year 1988and model 139-655-662 year 1989) ride-on lawn mower models as a front wheel bushing/ bearing.

38” (965 mm) cut MTD (model 132-660F670 year 1992) and MTD Yard Machines (12/38model 133K600F670 year 1993, 12.5/38 model 133I600F670 year 1993, model 13B1662F670years 2003 to 2004 and model 13BM688F670 years 2003 to 2004) as the steering armbushings.

42” cut MTD Yard Machines (model 13AI678G670 year 2002, model 13AS678G670 year2001 and model 13AQ688G670 years 2003 to 2004) and MTD Yard-Man (model 13AK694G671year 1998) as a deck lift bushing.

42” (1067 mm) cut MTD Yard Machines (model 13AF698G602 year 2003 and model13AQ688G670 years 2003 to 2004) ride-on lawn mower models as the steering armbushings.

42” (1067 mm) cut MTD Yard-Man (model 13AX694G401 year 1998, model 13BT604G401year 2003 and model 13BT604G452 year 2003) ride-on lawn mower models as a frontwheel bushing / bearing.

44” (1118 mm) cut MTD Yard Machines (model 137-682-670 year 1987) ride-on lawnmower models as a front wheel bushing / bearing.

32” (813 mm) cut White (model 131-332D672 year 1991 and L-11 models 138-346-672and 139-347-672 years 1988 to 1989) ride-on lawn mower models as a front wheelbushing / bearing.

38” (965 mm) cut White LT-12 (model 139-656-672 year 1989), LT-120 (model138-666-672 year 1988) ride-on lawn mower models as a front wheel bushing / bearing.

This Nylon bushing is fitted to selected Cub Cadet, MTD and White ride-on lawnmowers and ZTR’s and used in multiple fitment applications, including as a decklift arm bushing, deck wheel bushing, front wheel bushing / bearing and a steeringarm bushing.• Deck lift arm bushing• Deck wheel bushing• Front wheel bushing• Steering arm bushing

1

Cub Cadet - Non Genuine, MTD - Non Genuine, White - Non Genuine,

Bush - nylon, bushing - nylon, deck arm bushing, deck wheel bush, front wheel bush,nylon bush, nylon bushing, steering arm bush, wheel bushing,
