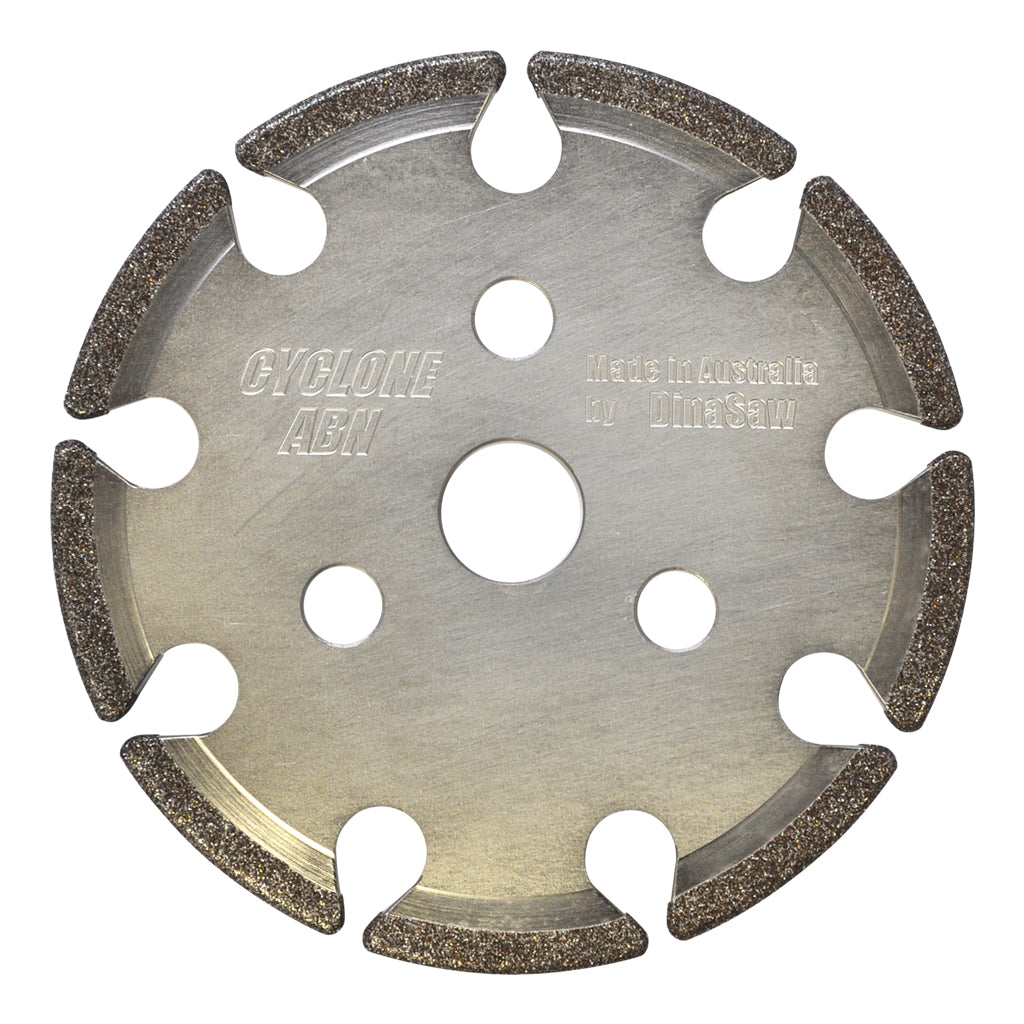

DINASAW ABN GRINDING WHEEL 145MM X 4MM X 22.2MM SUITS 3/8" CHAIN

DinaSaw ABN Grinding Wheel For Sharpening 3/8" Std Pitch Chainsaw Chains

This high quality DinaSaw grinding / sharpening wheel is suitable for use on 3/8"standard pitch chainsaw chains. ABN Grinding wheels are made from a blend of AmberBoron Nitride (ABN) and Cubic Boron Nitride (CBN) and are designed for grindinghardened steel (standard chainsaw chains).Tips for correct use:It is important to treat ABN grinding wheels differently to bonded wheels, thewheels can not be forced to grind, the operator must allow the wheel to cut on itsown. Excessive force, abrupt grinding or worn spindle bearings or flanges willcontribute to premature wear.

• ABN wheels will cut faster and cooler than aluminium oxide wheels.• They require no maintenance, they do not need to be dressed or deglazed.• They will maintain their profile for the life of the wheel.• ABN grinding wheels are manufactured on CNC equipment ensuring perfect balanceand dimensioning.• Australian made.

7/8"

22.2 mm

5 3/4"

145 mm

0.157"

4 mm

Yes

1

ABN wheels are not designed for use on Tungsten Carbide chain and doing so willdestroy the wheel and void warranty.

DinaSaw, GA Forestry Accessories,

ABN grinding wheel, ABN chainsaw chain grinding wheel, grinding wheel - ABN,
