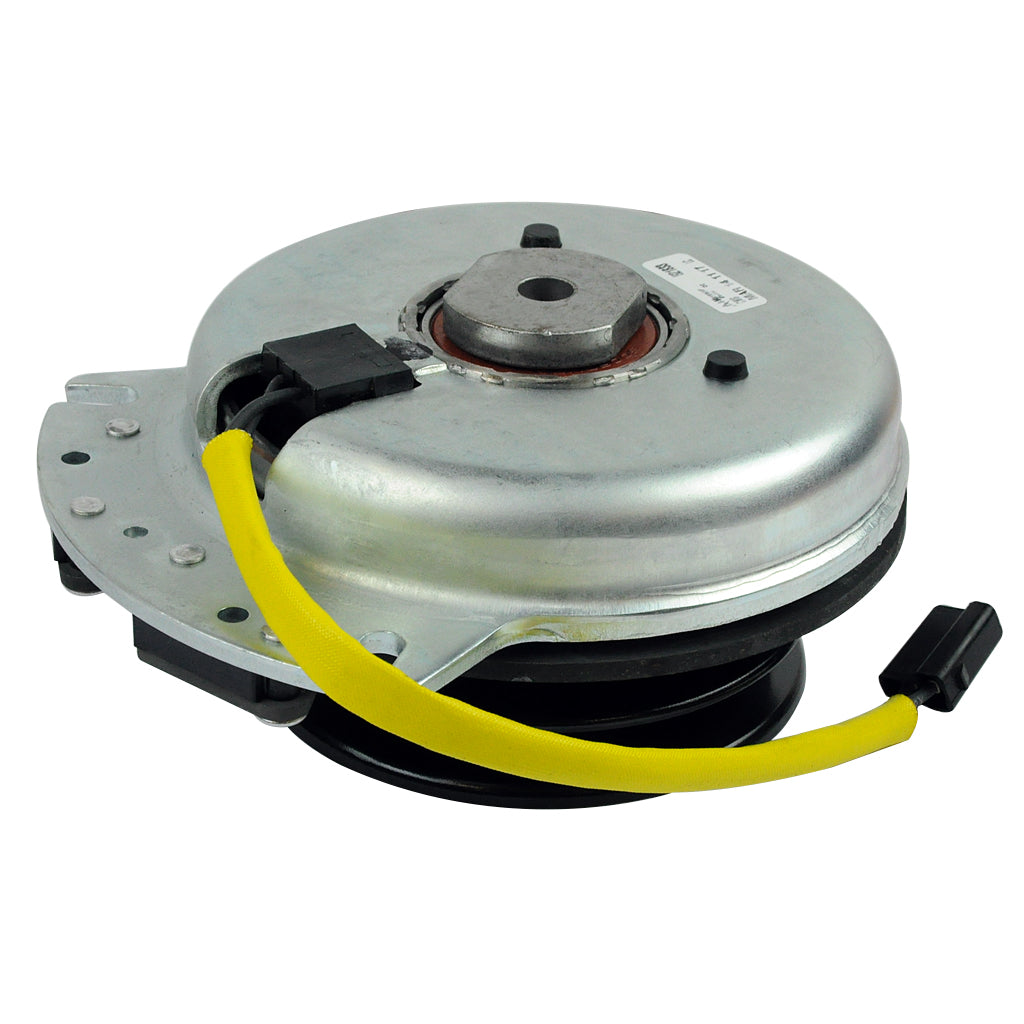

ELECTRIC PTO CLUTCH ASSEMBLY 1-1/8" ID X 4.875" PULLEY

Non-Genuine Toro, Warner Electric PTO Clutch Assembly

Toro: 94-4632, 105-1671,Warner: 5218-33,

1 1/8"

28.575 mm

4.875"

123.825 mm

Toro selected Z Master models including but not limited to Z320 (models 74191 and 74180 year 1998), Z325 (models 74182 and 74183 year 1998) and Z350 (model 74187 year 2000) zero turn radius (ZTR) ride-on models.

Manufactured by an OEM supplier.1 1/8" (28.575 mm) I.D Hub.4.875" (123.825 mm) O.D Precision machined double pulley.175 ft. lbs. torque.Suitable for use with two 1/2" ("A" or 68 series) belts.Operates in a clockwise direction (when viewed from the pulley side of the clutch).Uses high torque cool coil technology.High temperature bearings.Replaceable pulley bearing.Integrated, water tight and impact resistant wiring harness.

1

IMPORTANT INFORMATION ON ELECTRIC CLUTCHESOver the counter sales of clutches as spare parts should be discouraged.WHY? - The main causes of failures to electric clutches are due to faults with thebattery and/or charging circuits not providing the correct current to operate theclutch adequately leading to premature failure. Electric PTO clutches are aspecialist component that should only be fitted by a servicing dealer with thecorrect equipment to test both the charging circuits and battery condition. It istherefore the responsibility of the servicing dealer to test these items prior toinstalling a new clutch. Failure to do so will void warranty. Warranty coversnormal use and does not cover damage or defect which results from alteration,accident, neglect, or improper clutch selection, installation, operation, ormaintenance. Warranty covers faulty manufacture and/or workmanship.GA Spares stocks electric clutches manufactured by an OEM supplier.

TORO Non-Genuine, Warner Non-Genuine,

Clutch assembly - electric pto, electric pto clutch assembly, pto clutch assembly - electric,
