GREENFIELD TIE ROD END L/H

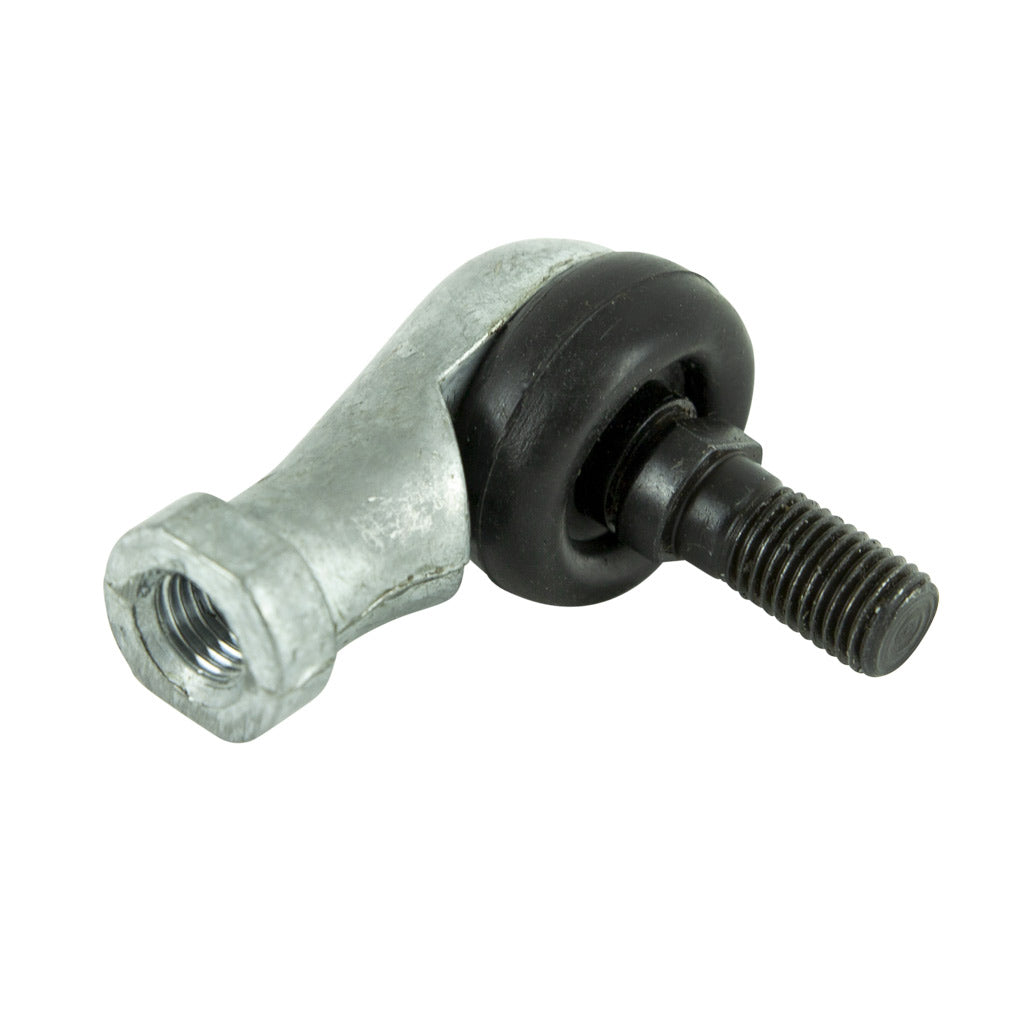

Non-Genuine Greenfield Ball Joint / Tie Rod End, M10 x 1.25 Male Right Hand Threadx M10 x 1.25 Female Left Hand Thread

Greenfield GT 02294, GT02294, GT2294, GT 2294

2.086" (Overall Height)

53 mm (Overall Height)

2.303" (Overall Length)

58.5 mm (Overall Length)

M10 x 1.25 Male Right Hand Thread x M10 x 1.25 Female Left Hand Thread x 0.787" (20mm) Long

25” (635 mm) cut Greenfield MiniMow ride-on lawn mower models as the tie rod endthat connects the steering link to the steering transfer shaft.

32” (813 mm) cut Greenfield FASTCUT 17.5/32 Standard (model GT22670) and 17.5/32Steel Deck (model GT22690), 25/32 Standard (model GT22875) and 25/32 Steel Deck(model GT22875SD) ride-on lawn mower models as the tie rod end that connects thesteering link rod to the chain sprocket wheel.

32” (813 mm) cut Greenfield Evolution FASTCUT32 (11.5 hp to 18 hp) ride-on lawnmower models as the tie rod end that connects the steering link rod to the chainsprocket wheel.

34” (864 mm) cut Greenfield Evolution FASTCUT34 (13.5 hp to 26 hp), FASTCUT17.5/34 Deluxe (model GT228995), 25/34 V-Twin Deluxe (model GT22900) ride-on lawnmower models as the tie rod end that connects the steering link rod to the chainsprocket wheel.

42” cut Greenfield FASTCUT 25/42 V-Twin Deluxe (model GT22885) ride-on lawn mowermodels as the tie rod end that connects the steering link rod to the chain sprocketwheel.

• Male End: M10 x 1.25 right hand thread• Female End: M10 x 1.25 left hand thread• Thread Length: 0.787" (20 mm)• Overall Length: 2.303" (58.5 mm)• Overall Height: 2.086" (53 mm)

1

For many late model Greenfield ride-on lawn mowers use this left-hand threaded tierod end (CHD8242) with our tie rod end part number CHD8240 (the right-hand threadedtie rod end that is used on selected models as the inner and outer tie rod ends forthe steering drag links and is also used as the tie rod end that connects thesteering link rod to the steering crank).

Greenfield Non-Genuine,

Ball joint, drag link end, tie rod end, rod end,
