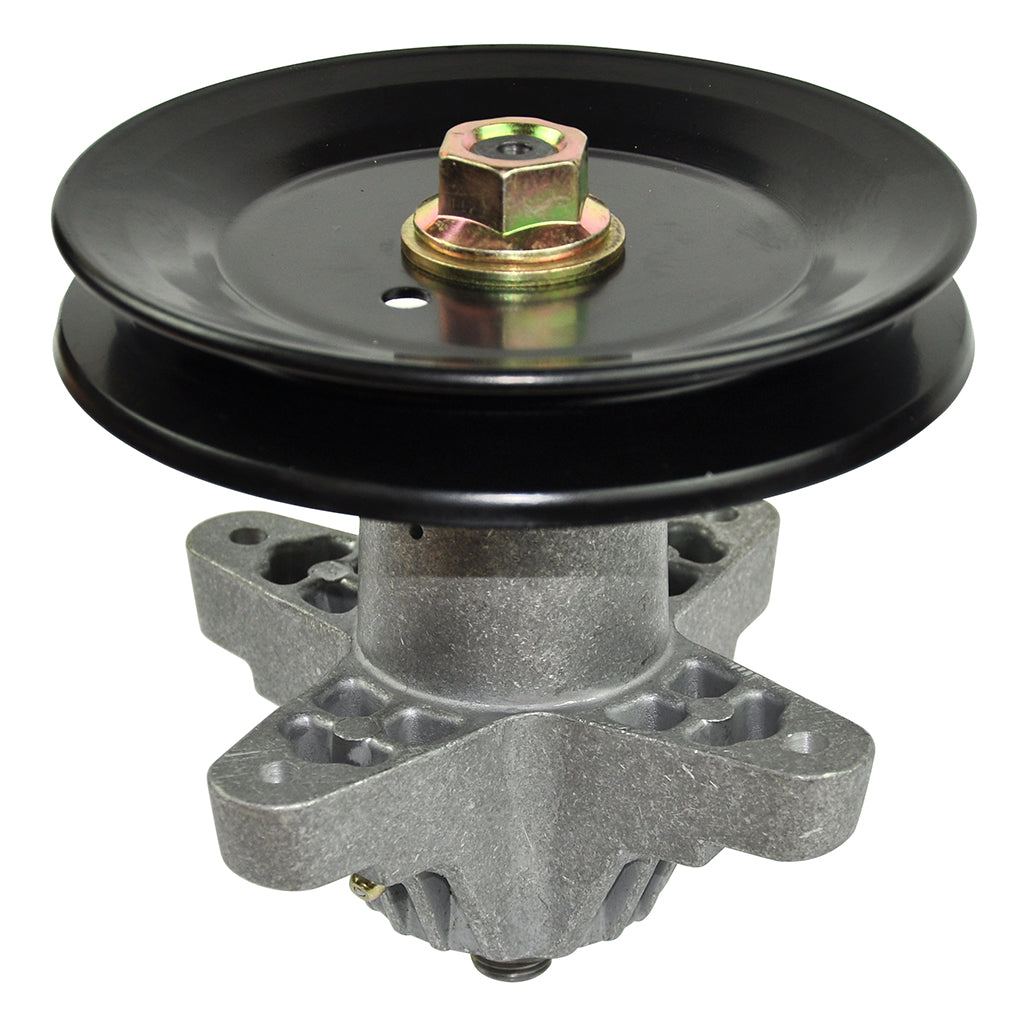

MTD / YARDMAN / CUB CADET / TROY BILT / TORO WHEELHORSE SPINDLE ASSEMBLY SUITS 42"

Non-Genuine Cub Cadet, Massey Ferguson, MTD, Toro, Troy Bilt 41" & 42" Cut SpindleAssembly

Cub Cadet 618-0624, 618-0624A, 618-0624B, 618-0659, 618-0659A, 918-0624, 918-0624A,918-0624B, 918-0659, 918-0659AMassey Ferguson 618-0624, 618-0624A, 618-0624B, 618-0659, 618-0659A, 918-0624,918-0624A, 918-0624B, 918-0659, 918-0659AMTD 618-0624, 618-0624A, 618-0624B, 618-0659, 618-0659A, 918-0624, 918-0624A,918-0624B, 918-0659, 918-0659AToro 112-0460Troy Bilt 618-0624, 618-0624A, 618-0624B, 618-0659, 618-0659A, 918-0624, 918-0624A,918-0624B, 918-0659, 918-0659A

Fits 6-Point Star

104.2 cm & 106.7 cm

41" & 42"

1042 mm & 1067 mm

6 1/4"

158.75 mm

.938"

23.825 mm

5/8" - 18 UNF

42" (1067 mm) cut Cub Cadet 1000 Series LT1042* (19 hp model 13AX11CG630 years 2005to 2006) ride-on lawn mower models and RZT-42 [RZT42, RZT 42] (models 17AE2ACG330year 2010 and 17 hp model 17AE2ACG630 years 2007 to 2008) zero turn radius (ZTR)ride-on lawn mower models. 2 required per unit.

41" (1042 mm) cut Massey Ferguson MF41-20RD (model 13AE51CN695 year 2007) ride-onlawn mower models. 2 required per unit.

Massey Ferguson 41" cut MF41-20RD 13AE51CN695 (2007) model ride on lawnmower models.

42" (1067 mm) cut MTD Black Beauty (18.5 hp model 13A0771G670 year 2006), YardMachines (models 13A7771G670 years 2005 to 2006 and 13AD791G670 year 2005),Yard-Man (models 13AP604G671 years 2006 to 2007, 13AV604G371 year 2009, 13AV604G671year 2007 and 20 hp 13AX604G671 year 2005) ride-on lawn mower models and Yard-Man ZSeries RZT-42 [RZT42, RZT 42] (models 17AC2ACG055 year 2010 and 17AE2ACG678 year2010) zero turn radius (ZTR) ride-on lawn mower models. 2 required per unit.

Selected Toro models. 2 required per unit.

42" (1067 mm) cut Troy Bilt (17.5 hp model 13AN779G766 year 2005) ride-on lawnmower models. 2 required per unit.

For 42” cut decks using star centre hole blades and fitted with a 6.250”spindle pulley.

1

When installing new spindle assemblies, pulley nuts must be checked and correctlytightened. All spindle assemblies are sold as singles, order the quantity requiredto make up a set.

*Cub Cadet LT1042 - more than one type of spindle assembly was fitted to thesemodels during their production run (other spindles fitted to selected modelsinclude our JAS7579 and JAS7581), please check your machine carefully prior toordering. This spindle assembly replaces our part number JAS7577. For a replacementspindle pulley use our part number PUL7476.
