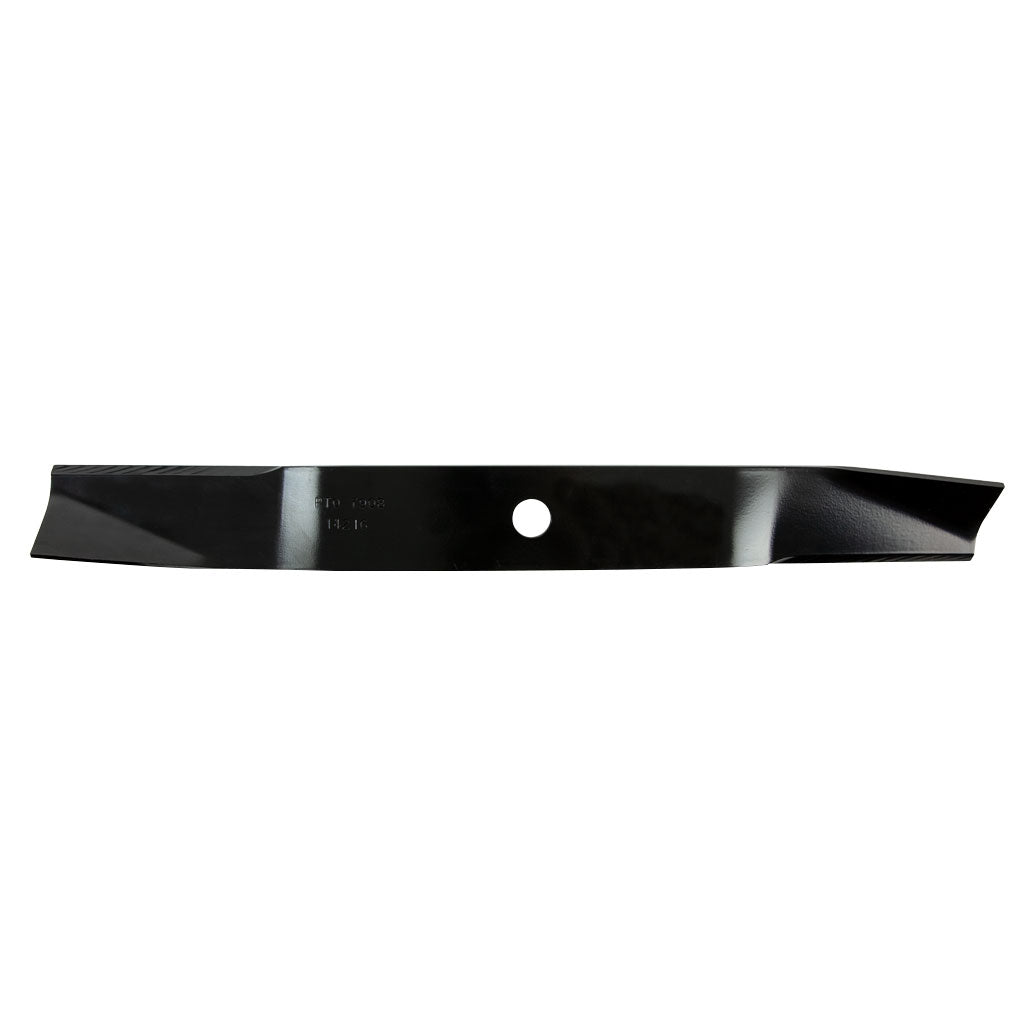

MURRAY / VICTA / SIMPLICITY SNAPPER 21 3/16" BAR BLADE 2 X 42" CUT (Sold per blade)

Non-Genuine Craftsman, Murray, Parklander, Simplicity, Snapper, Victa, 42" CutStandard Bar Blade

Craftsman: 1737816, 1737816BM, 1737816BMA,1737816BMYPMurray: 1737816, 1737816BM, 1737816BMA,1737816BMYPParklander: 1737816, 1737816BM, 1737816BMA,1737816BMYPSimplicity: 1737816, 1737816BM, 1737816BMA,1737816BMYPSnapper: 1737816, 1737816BM, 1737816BMA,1737816BMYPVicta: 1737816, 1737816BM, 1737816BMA,1737816BMYP

.802"

20.37 mm

42"

1067 mm

106 cm

21 3/16"

538.16 mm

.170"

4.318 mm

2 1/4"

57.15 mm

Round

42" (1067 mm) Cut Craftsman CR28006 (model 28006, years 2011 - 2012) zero turnradius (ZTR) ride-on lawn mower models.

2 blades required for 42" cut

42" (1067 mm) Cut Murray MT175420H (17.5 hp model 2691000, fitted with deck number1696084, year 2012) ride-on lawn mower models.

2 blades required for 42" cut

42" (1067 mm) Cut Parklander (by Murray) MT175420H (17.5 hp model 2691000, fittedwith deck number 1696084, year 2012) ride-on lawn mower models.

2 blades required for 42" cut

42" (1067 mm) Cut Simplicity selected ride-on lawn mower models.

2 blades required for 42" cut

42" (1067 mm) Cut Snapper selected ride-on lawn mower models.

2 blades required for 42" cut

42" (1067 mm) Cut pressed deck Victa LT 19.5/42 [V125] (19.5 hp model 2691005,fitted with deck number 1696085, years 2012 to 2013, Note: after serial number2014915223. Please note: there is more than one blade used on these models. Thesemodels can be identified as having the spindle housing mounted on top of the deck),NXT 19.5/42 [NXT19542, VXT19542] (19.5 hp model 2690919 fitted with deck number1695927, years 2010 to 2014), SPX 20/42 [SPX2042] (20 hp models 2691152,2691152-00, 2691152-01 and 2691152-02, year 2013), SPX 22/42 [SPX2242] (22 hp model2691236-00, year 2014), SPX 23/42 [SPX2342] (23 hp model 2691235-00, year 2014),V125 [LT 19.5/42] (19.5 hp model 2691005, fitted with deck number 1696085, years2012 to 2013, Note: after serial number 2014915223) and V125 [23 /42] (23 hp model2690917-01 Note: after serial number 2014915223 Please note: there is more than oneblade used on these models, both of these V125 models can be identified as havingthe spindle housing mounted on top of the deck) ride-on lawn mower models and VZ285[21 /42, ZTR285, 285ZTR] (21 hp model 7800823, years 2011 to 2013) and VZT 20/42[VZT2042] (20 hp models 2691155 and 2691155-00, years 2013, 2014), VZT 22/42[VZT2242] (22 hp models 2691379-00 and 2691379-01) zero turn radius (ZTR) ride-onmodels.

2 blades required for 42" cut

1

All blade bars are sold as singles, order the quantity required to make up a set.

Craftsman Non-Genuine, Murray Non-Genuine, Parklander Non-Genuine, SimplicityNon-Genuine, Snapper Non-Genuine, Victa Non-Genuine,

Bar Blade, Blade - Bar, Ride-On Blade,
