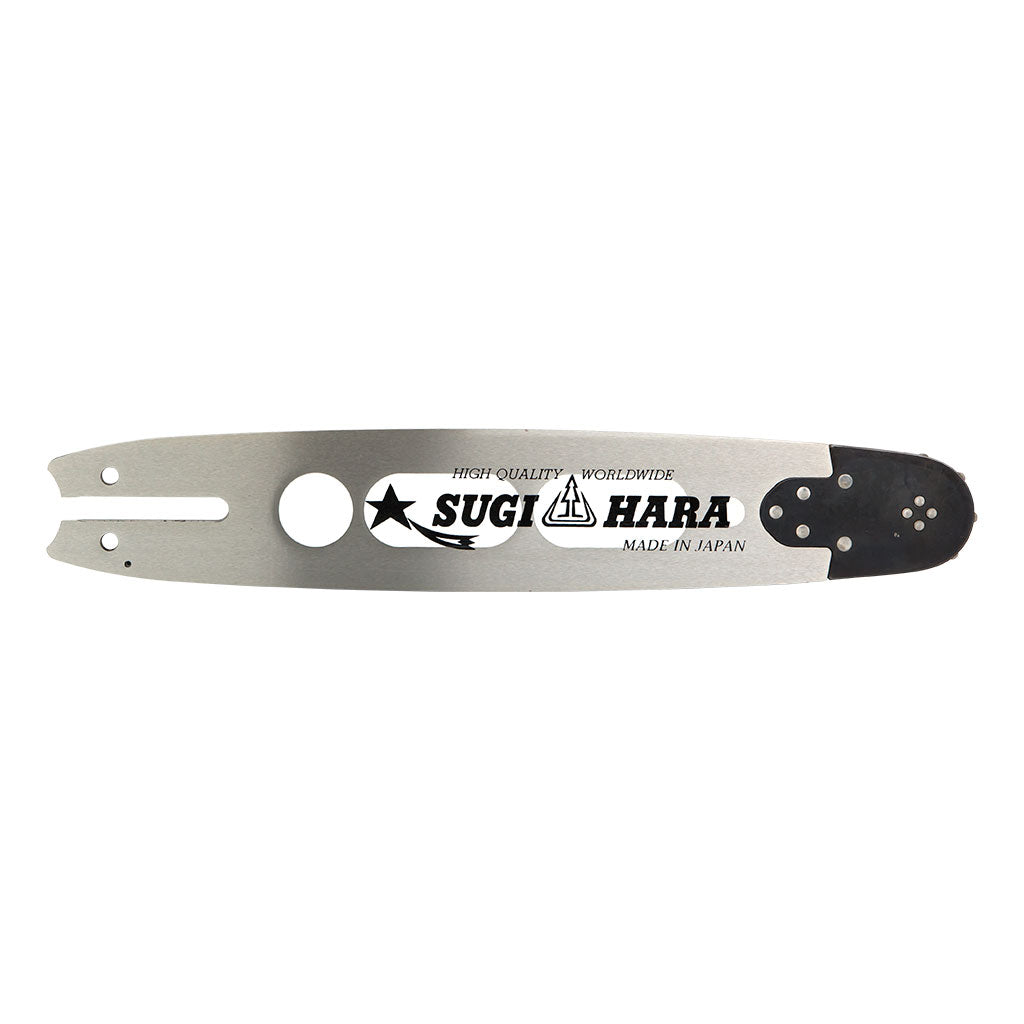

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 12 #20 AD LIGHT WEIGHT BAR

PROKUT PLATINUM SUGIHARA Reduced Weight Pro Bar, 12" x 3/8" Low Profile x .050" x44 DL, AD Mount - Professional Replaceable Sprocket Nose Guide Bar - Made In Japan

The PROKUT Platinum Sugihara Reduced Weight Professional guide bars aremanufactured In Japan from a single piece of steel. Manufactured the same way asthe Sugihara Red Label Pro Solid bars but with sections removed and filled with arigid, weight reducing resin. One of the best guide bars in the world todaySugihara Reduced Weight Pro guide bars are proving to be an extremely popularversion amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide barsare sought after for their high performance and light-weight. They are easilyrecognised by the white resin sections and black label. The most striking lookingbar on the market.

Oregon 120SDEA074, 120SPEA074, 120SXEA074.Sugihara - Diatop SL2U-0N30-A.

PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easilyrecognised by the white resin sections and black label.Manufactured the same way as the Sugihara Red Label Pro Solid bars but withsections removed and filled with a rigid, weight reducing white resin.This guide bar weighs just 390g.Professional premium quality, reduced weight replaceable sprocket nose guide bar.High durability sprocket nose.Polished lacquered finish.Nose fastens with three rivets, and is securely held by wide and strong overlappingears.The long sprocket nose takes most of the abuse, and minimizes wear to the barsbody.Super tough steel, heat treated up to 4 times on different parts of the guide bar,provides superior bar-body strength and tough rails with excellent resistance towear and chipping.PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.Made in Japan.All PROKUT guide bars are reversible for longer life.

20S

12"

30 cm

3/8" Low Profile.

PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar

20S / Semi-Chisel

AD

44

8 Tooth sprocket nose

Up to 3.5 cu. in (57 cc)

Alpina 361 and 391 model chainsaws.

OLEO-MAC 240, 241, 244, 344, 931, 935, 1700, BLITZ, E1900, OLE 140F and OLE 300model chainsaws.

STIHL 009, 009 L, 010, 011, 012, 015, 017, 018, 018 C, 019, 019 T, 020, 020 SUPER,020 T, 021, 023, 023 C, 023 L, E 10, E 14, E 140, E 160, E 180, E 180 C, MS 170, MS171, MS 180 C, MS 180 C-B, MS 180 C-BE, MS 181, MS 181 C, MS 181 C-BE, MS 190 T, MS191, MS 191 T, MS 192, MS 192 C, MS 192 T, MS 192 TC, MS 192 T C-E, MS 193, MS 193T, MS 200, MS 200 T, MS 201 C, MS 201 C-E, MS 201 C-EM, MS 201 T, MS 210, MS 210 C,MS 210 C-BE, MS 211, MS 211 C, MS 211 C-BE, MS 220, MS 220 Q, MSE 140, MSE 140 C,MSE 140 C-BQ, MSE 170, MSE 170 C-BQ,MSE 180, MSE 180 C, MSE 180 C-BQ, MSE 200 and MSE 210 C-BQ model chainsaws. Note:Please check your saw carefully prior to ordering, some of these saw models werealso released fitted with a .325” pitch chain.

STIHL 021, 023 C, 025, 025 C, MS 230, MS 230 C, MS 230 C-BE, MS 231, MS 231 C-BE,MS 250, MS 250 C, MS 250 C-BE, MS 251, MS 251 C-BE, MS 251 C-BEQ, MS 251 Cmodelchainsaws as a NARROW Cut option.

STIHL HT 70, HT 73, HT 75, HT 100, HT 101, HT 130, HT 131, HT 250 pole saw / polepruner models and HT-KM pole saw / pole pruner Kombi Tool. Note: Please check yoursaw carefully prior to ordering, some of these saw models were also released fittedwith a 1/4" pitch chain.

1

Use with our semi-chisel chain loop part number GAF20S044DL.Other PROKUT bar options to fit the above models Include: - For a PROKUTsemi-professional laminated multi-rivet sprocket nose guide bar option use our partnumber GAFAD1220EL. For a PROKUT consumer laminated single rivet sprocket noseguide bar option use our part number GAFAD1220DL.

Replaces our part numbers OMK120SDEA074, OMK120SPEA074, OMK120SXEA074,

PROKUT PLATINUM SUGIHARA Reduced Weight Series, GA Forestry Accessories,

Bar, guide bar, reduced weight professional replaceable sprocket nose guide bar,sprocket nose guide bar,
