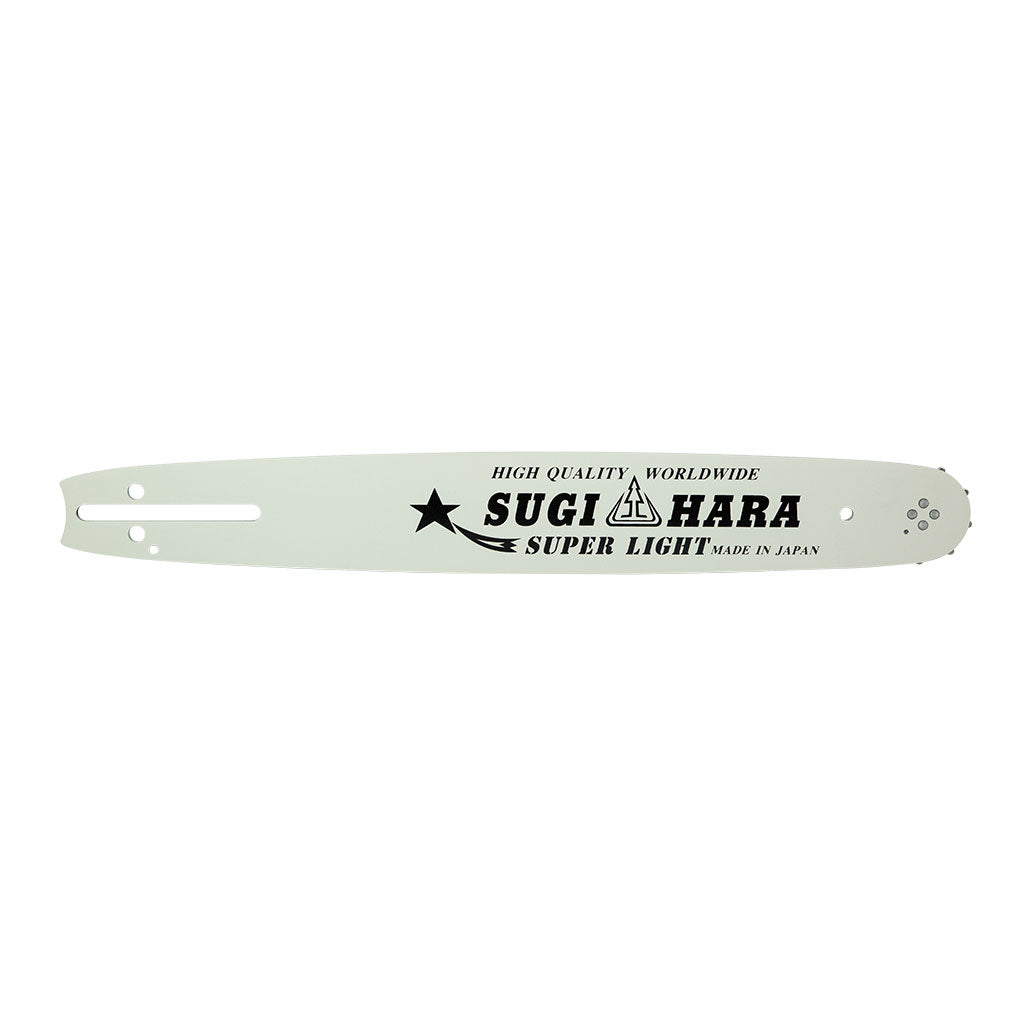

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 16 #20 AD LIGHT WEIGHT BAR

PROKUT PLATINUM SUGIHARA Super Light, 16" x 3/8" Low Pro x .050" x 55 DL Or 56 DL, AD Mount - Pro Laminated Multi-Rivet Sprocket Nose Guide Bar - Made In Japan

PROKUT Sugihara Pro Laminated multi-rivet sprocket nose guide bars are super light to use but are still one of the the strongest and longest wearing laminated bars on the market.

Pro Laminated multi-rivet sprocket nose guide bar.Small radius nose helps reduce kickback.Excellent rail strength for long life.Light-weight slim contour, for excellent manoeuvrability.Narrow cut (kerf) cutting systems require less power from the saw than standard cutting systems.All PROKUT guide bars are reversible for longer life.

16"

40 cm

3/8" Low Pro.

Pro Laminated Multi-Rivet Sprocket Nose Guide Bar

20S / Semi-Chisel.

AD

.050"

55 (most) or 56 (some).

9 Tooth sprocket nose.

38 cc to 62 cc (2.3 to 3.8 cu. in.)

Alpina 361, 391 models. (These models use a 56 drive link chain).

Oleo-Mac 240, 241, 244, 344, 931, 935, 1700, BLITZ, E1900, OLE 140F, OLE 300 models. (These models use a 55 drive link chain).

STIHL 009, 009 L, 010, 011, 012, 015, 017, 018, 018 C, 019, 019 T, 020, 020 SUPER, 020 T, 021, 023, 023 C, 023 L, E 10, E 14, E 140, E 160, E 180, E 180 C, MS 170, MS 171,MS 180 C, MS 180 C-B, MS 180 C-BE, MS 181, MS 181 C, MS 181 C-BE, MS 190 T, MS 191, MS 191 T, MS 192, MS 192 C, MS 192 T, MS 192 TC, MS 200, MS 200 T, MS 201 C, MS 201 T, MS 210, MS 210 C, MS 210 C-BE, MS 211, MS 211 C, MS 211 C-BE, MS 220, MS 220 Q, MSE 140, MSE 140 C, MSE 140 C-BQ, MSE 170, MSE 180, MSE 180 C, MSE 180 C-BQ, MSE 200. (The

STIHL 021, 023 C, 025, 025 C, MS 230, MS 230 C, MS 230 C-BE, MS 231, MS 231 C-BE, MS 250, MS 250 C, MS 250 C-BE, MS 251, MS 251 C-BE, MS 251 C-BEQ, MS 251 C as a NARROW CUT option. (These models use a 55 drive link chain).

1

Use with our semi-chisel chain loop part numbers GAF20S055DL for 55 drive link applications or GAF20S056DL for 56 drive link applications. For a consumer laminated single rivet sprocket nose guide bar option use our part number GAFAD1620DL. For a semi-professional laminated multi-rivet sprocket nose guide bar option use our part number GAFAD1620EL. For a 55 drive link bar and chain combo option containing a semi-professional multi-rivet sprocket nose laminated bar use our part number GAF105703.
