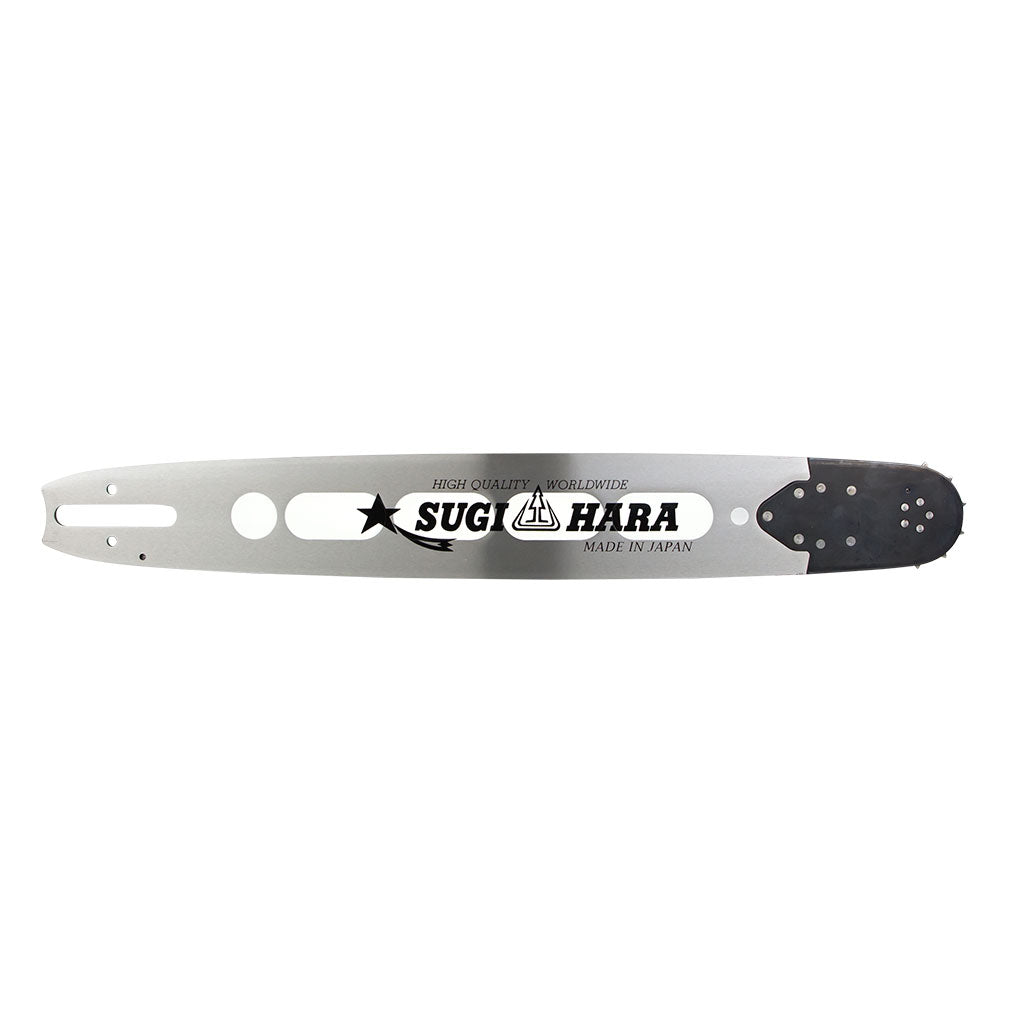

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 18 #43 CD LIGHT WEIGHT BAR

PROKUT PLATINUM SUGIHARA Reduced Weight Pro Bar, 18" x 3/8" x .063" x 66 DL, CDMount - Professional Replaceable Sprocket Nose Guide Bar - Made In Japan

The PROKUT Platinum Sugihara Reduced Weight Professional guide bars aremanufactured In Japan from a single piece of steel. Manufactured the same way asthe Sugihara Red Label Pro Solid bars but with sections removed and filled with arigid, weight reducing resin. One of the best guide bars in the world todaySugihara Reduced Weight Pro guide bars are proving to be an extremely popularversion amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide barsare sought after for their high performance and light-weight. They are easilyrecognised by the white resin sections and black label. The most striking lookingbar on the market.

Oregon 183RNDD025Sugihara - Diatop ST2U-3Q45-A

PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easilyrecognised by the white resin sections and black label.Manufactured the same way as the Sugihara Red Label Pro Solid bars but withsections removed and filled with a rigid, weight reducing white resin.This guide bar weighs just 970gProfessional premium quality, reduced weight replaceable sprocket nose guide bar.High durability sprocket nose.Polished lacquered finish.Nose fastens with three rivets, and is securely held by wide and strong overlappingears.The long sprocket nose takes most of the abuse, and minimizes wear to the barsbody.Super tough steel, heat treated up to 4 times on different parts of the guide bar,provides superior bar-body strength and tough rails with excellent resistance towear and chipping.PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.Made in Japan.All PROKUT guide bars are reversible for longer life.

43

18"

45 cm

3/8"

PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar

43S / Semi-Chisel or 43F / Full-Chisel

CD

.063"

66

11 Tooth sprocket nose

50 cc to 100 cc (3.0 to 6.0 cu. in.)

STIHL 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum, 038 Super Magnum, 039, 041,042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056, 056S, 064, 066, 066 Magnum,E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C, MS 361 C-B, MS 361 C-Q, MS362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS 390, MS 390 Farm Boss, MS 440,MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460 Magnum, MS 461, MS 462, MS 462 C-M,MS 650, MS 660, MS 660 Magnum, MS 661, MS 661 RC-M, MSE 220 C and MSE 250 C models.

Please check your saw carefully prior to ordering, some of the above saw modelswere also released fitted with a .404" pitch chain.

1

Replaces our part number OMK183RNDD025

Use with our semi-chisel chain loop part number GAF43S066DL or our full-chiselchain loop part number GAF43F066DL. For a PROKUT PLATINUM SUGIHARA solidprofessional replaceable sprocket nose guide bar option use our part numberGAFCD1843RSP. For a standard PROKUT solid professional replaceable sprocket noseguide bar option use our part number GAFCD1843RS. For a semi-professional laminatedmulti-rivet sprocket nose guide bar option use our part number GAFCD1843PL. For abar and chain combo option containing a semi-professional laminated multi-rivetsprocket nose guide bar use our part number GAF110783.

PROKUT PLATINUM SUGIHARA Reduced Weight Series, GA Forestry Accessories,

Bar, guide bar, reduced weight professional replaceable sprocket nose guide bar,sprocket nose guide bar,
