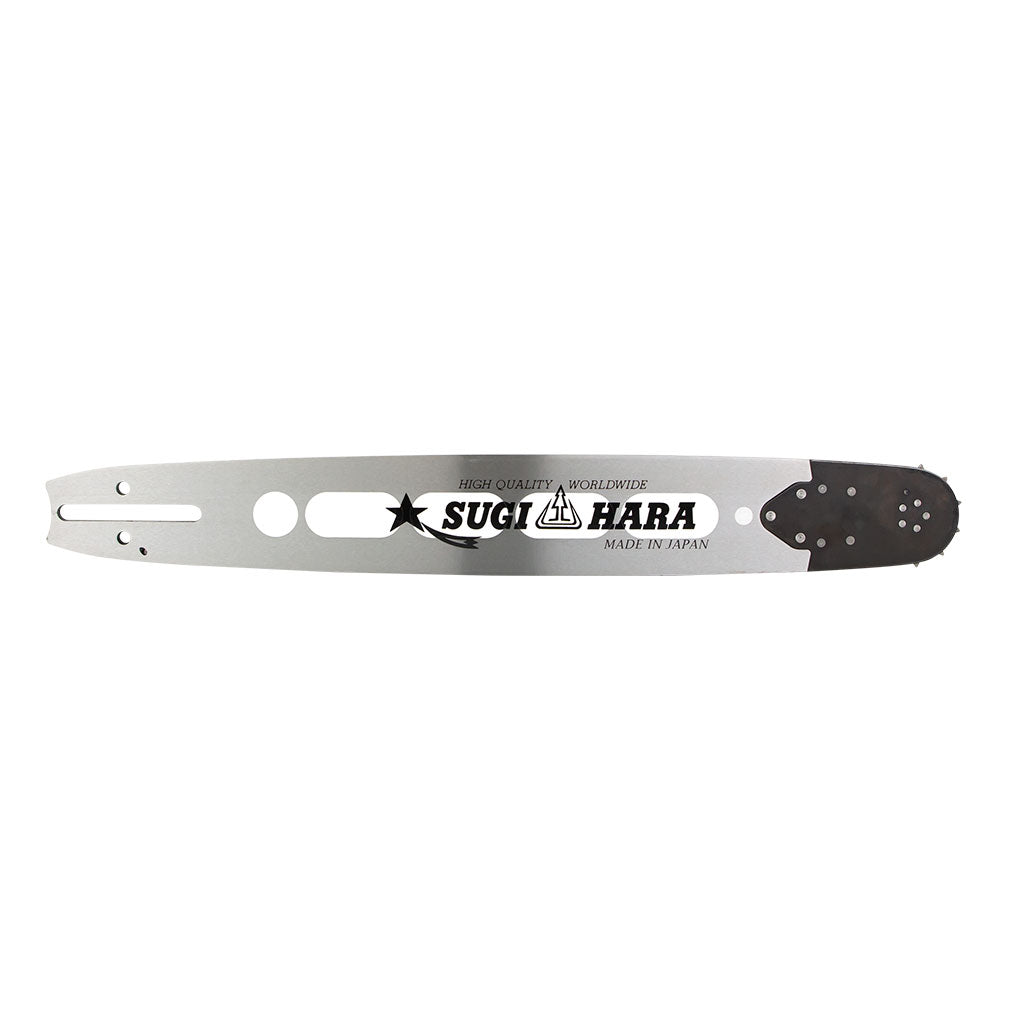

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 18 #48 CB LIGHT WEIGHT BAR

PROKUT PLATINUM SUGIHARA Reduced Weight Pro Bar, 18" x 3/8" x .058" x 68 DL, CBMount - Professional Replaceable Sprocket Nose Guide Bar - Made In Japan

The PROKUT Platinum Sugihara Reduced Weight Professional guide bars aremanufactured In Japan from a single piece of steel. Manufactured the same way asthe Sugihara Red Label Pro Solid bars but with sections removed and filled with arigid, weight reducing resin. One of the best guide bars in the world todaySugihara Reduced Weight Pro guide bars are proving to be an extremely popularversion amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide barsare sought after for their high performance and light-weight. They are easilyrecognised by the white resin sections and black label. The most striking lookingbar on the market.

Oregon 188RNDD009Sugihara - Diatop VT3U-8Q45-A

PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easilyrecognised by the white resin sections and black label.Manufactured the same way as the Sugihara Red Label Pro Solid bars but withsections removed and filled with a rigid, weight reducing white resin.This guide bar weighs just 970gProfessional premium quality, reduced weight replaceable sprocket nose guide bar.High durability sprocket nose.Polished lacquered finish.Nose fastens with three rivets, and is securely held by wide and strong overlappingears.The long sprocket nose takes most of the abuse, and minimizes wear to the barsbody.Super tough steel, heat treated up to 4 times on different parts of the guide bar,provides superior bar-body strength and tough rails with excellent resistance towear and chipping.PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.Made in Japan.All PROKUT guide bars are reversible for longer life.

48

18"

45 cm

3/8"

PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar

48S / Semi-Chisel or 48F / Full-Chisel

CB

.058"

68

11 Tooth sprocket nose

50 cc to 100 cc (3.0 to 6.0 cu. in.)

Alpina 760 and P70 model chainsaws.

Dolmar PS-6400, PS-6400 H, PS-6400 HS, PS-6400 W, PS-7300, PS-7300 H, PS-7300 HS,PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL model chainsaws.Fits: Husqvarna 61, 160, 162, 180, 181, 185, 260, 266, 268, 272, 281, 285, 288, 288XP LITE, 298, 365, 371, 371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP,385 XPG, 385 XPW, 390 XP, 390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395XPW, 465 RANCHER, 480, 562 XP, 562 XPG, 570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576XP AUTO TUNE, 576 XPG, 576 XPW, 1100, 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65,L 66, L 70 and L 77 model chainsaws.

Jonsered 625, 630, 630 Super, 630 West Coast, 635, 670, 670 WEST COAST, 2065, 2071,2077, 2083, 2083II, 2094, 2095, 2163, 2165, 2171, CS 2165, CS 2171, CS 2171 WH, CS2186, CS 2186 WH and CS 2188 model chainsaws. Note: Please check your saw carefullyprior to ordering, some of the above saw models were also released fitted with a.404" pitch chain.

Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000 and DCS 9010 FL modelchainsaws. Note: Please check your saw carefully prior to ordering, some of thesesaw models were also released fitted with a .404" pitch chain.

Opem K2 Super model chainsaws.

Partner 550, 650, 1655, 2055, 7000, P-55, P65, P70, P85, P-100, R-11, R-12, R-14,R-16, R-17, R-18, R-19, R-20, R-21, R-22, R-23, R-30, R-35, R-40, R-416, R-420,R-421, R-435, R-440, S-50, S-55 and S-65 model chainsaws.

Poulan / Poulan Pro 415, 425, 445, 475 and 505 model chainsaws. Note: Please checkyour saw carefully prior to ordering, some of these saw models were also releasedfitted with a .404" pitch chain.

Shindaiwa 550, 575, 577, 680, 695, 757, 757C and 757W model chainsaws.

Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 model chainsaws.

1

Replaces our part number OMK188RNDD009

Use with our semi-chisel chain loop part number GAF48S068DL or our full-chiselchain loop part number GAF48F068DL.Other PROKUT bar options to fit the above models Include: - For a PROKUT PLATINUMSUGIHARA solid professional replaceable sprocket nose guide bar option (which ismade In Japan) use our part number GAFCB1848RSP. For a standard PROKUT solidprofessional replaceable sprocket nose guide bar option use our part numberGAFCB1848RS. For a PROKUT semi-professional laminated multi-rivet sprocket noseguide bar option use our part number GAFCB1848PL. For a bar and chain combo optioncontaining a semi-professional laminated multi-rivet sprocket nose guide bar useour part number GAF109117.
