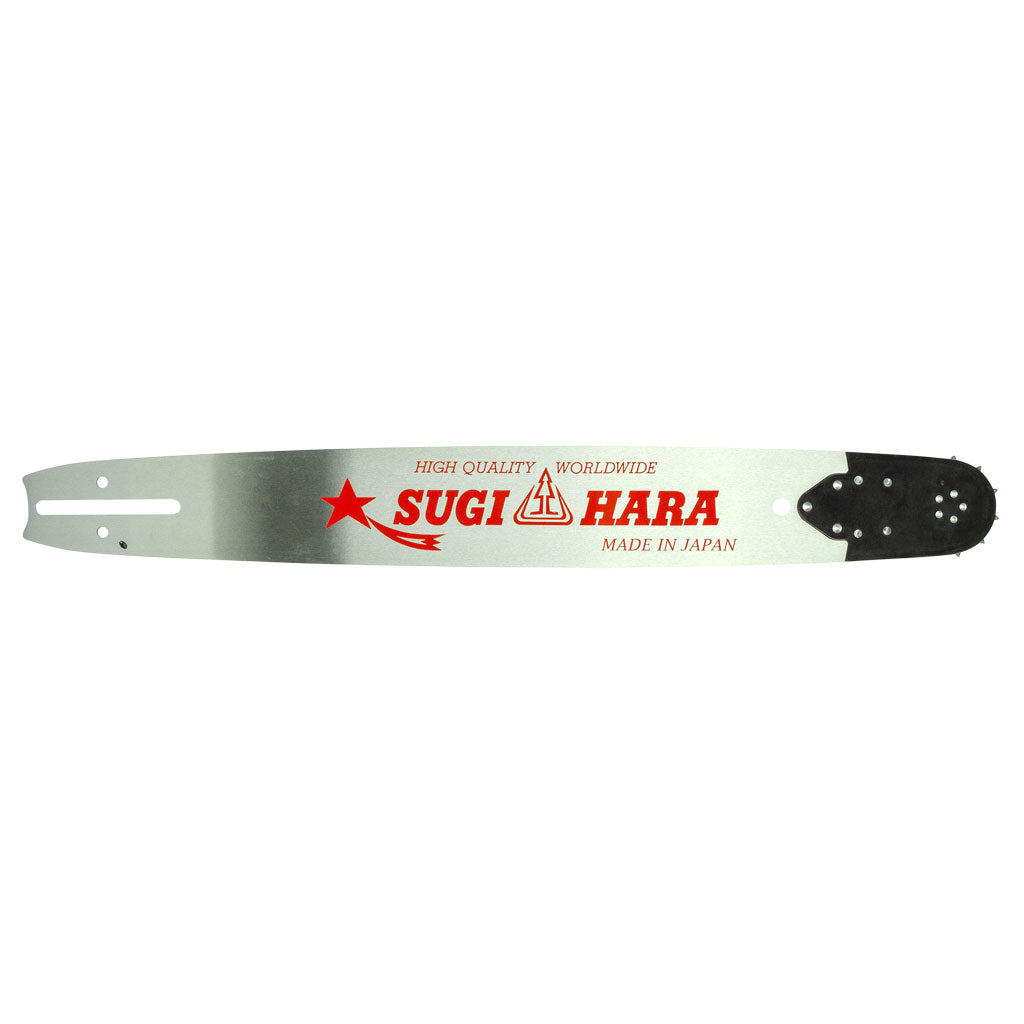

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 20 #48 CB

PROKUT PLATINUM SUGIHARA 20" x 3/8" x .058" x 72 DL, CB Mount, Solid ProfessionalReplaceable Sprocket Nose Guide Bar - Made In Japan

Oregon 208RNDD009Sugihara - Diatop VT3T-8Q50-A

Professional premium quality, solid, replaceable sprocket nose guide bar.GAFCB2048RSP,Oregon 208RNDD009,Sugihara - Diatop VT3T-8Q50-A,Nose fastens with three rivets, and is securely held by wide and strong overlappingears.The long sprocket nose takes most of the abuse, and minimizes wear to the barsbody.Super tough steel, heat treated up to 4 times on different parts of the guide bar,provides superior bar-body strength and tough rails with excellent resistance towear and chipping.PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.Made in Japan.All PROKUT guide bars are reversible for longer life.

Professional premium quality, solid, replaceable sprocket nose guide bar.Manufactured from a single piece of steel, featuring superior durability andstiffness characteristics.High durability sprocket nose.Polished lacquered finish.Nose fastens with three rivets, and is securely held by wide and strong overlappingears.The long sprocket nose takes most of the abuse, and minimizes wear to the barsbody.Super tough steel, heat treated up to 4 times on different parts of the guide bar,provides superior bar-body strength and tough rails with excellent resistance towear and chipping.PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.Made in Japan.All PROKUT guide bars are reversible for longer life.

20"

20"

50 cm

3/8"

PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar

48S / Semi-Chisel or 48F / Full-Chisel

CB

.058"

72

11 Tooth sprocket nose

50 cc to 100 cc (3.0 to 6.0 cu. in.)

Alpina 760 and P70 models.PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL model chainsaws.

465 RANCHER, 480, 562 XP, 562 XPG, 570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XPAUTO TUNE, 576 XPG, 576 XPW, 1100, 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L66, L 70 and L 77 model chainsaws.

Dolmar PS-6400, PS-6400 H, PS-6400 HS, PS-6400 W, PS-7300, PS-7300 H, PS-7300 HS,PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL model chainsaws.

Husqvarna 61, 160, 162, 180, 181, 185, 260, 266, 268, 272, 281, 285, 288, 288 XPLITE, 298, 365, 371, 371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385XPG, 385 XPW, 390 XP, 390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW,465 RANCHER, 480, 562 XP, 562 XPG, 570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XPAUTO TUNE, 576 XPG, 576 XPW, 1100, 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L66, L 70 and L 77 model chainsaws.

R-14, R-16, R-17, R-18, R-19, R-20, R-21, R-22, R-23, R-30, R-35, R-40, R-416,R-420, R-421, R-435, R-440, S-50, S-55 and S-65 model chainsaws.

Jonsered 625, 630, 630 Super, 630 West Coast, 635, 670, 670 WEST COAST, 2065, 2071,2077, 2083, 2083II, 2094, 2095, 2163, 2165, 2171, CS 2165, CS 2171, CS 2171 WH, CS2186, CS 2186 WH and CS 2188 model chainsaws. Note: Please check your saw carefullyprior to ordering, some of the above saw models were also released fitted with a.404" pitch chain.

Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000 and DCS 9010 FL modelchainsaws. Note: Please check your saw carefully prior to ordering, some of thesesaw models were also released fitted with a .404" pitch chain.

Opem K2 Super model chainsaws.

Partner 550, 650, 1655, 2055, 7000, P-55, P-65, P-70, P-85, P-100, R-11, R-12,R-14, R-16, R-17, R-18, R-19, R-20, R-21, R-22, R-23, R-30, R-35, R-40, R-416,R-420, R-421, R-435, R-440, S-50, S-55 and S-65 model chainsaws.

Poulan / Poulan Pro 415, 425, 445, 475 and 505 model chainsaws. Note: Please checkyour saw carefully prior to ordering, some of these saw models were also releasedfitted with a .404" pitch chain.

Shindaiwa 550, 575, 577, 680, 695, 757, 757C and 757W model chainsaws.

Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 model chainsaws.

1

Use with our semi-chisel chain loop part number GAF48S072DL or our full-chiselchain loop part number GAF48F072DL. For a standard PROKUT solid professionalreplaceable sprocket nose guide bar option use our part number GAFCB2048RS. For asemi-professional laminated multi-rivet sprocket nose guide bar option use our partnumber GAFCB2048PL. For a bar and chain combo option containing a semi-professionallaminated multi-rivet sprocket nose guide bar use our part number GAF109118.Replaces our part number OMK208RNDD009.

nose guide bar,

1

Use with our semi-chisel chain loop part number GAF48S072DL or our full-chiselchain loop part number GAF48F072DL. For a standard PROKUT solid professionalreplaceable sprocket nose guide bar option use our part number GAFCB2048RS. For asemi-professional laminated multi-rivet sprocket nose guide bar option use our partnumber GAFCB2048PL. For a bar and chain combo option containing a semi-professionallaminated multi-rivet sprocket nose guide bar use our part number GAF109118.Replaces our part number OMK208RNDD009.

PROKUT PLATINUM SUGIHARA, GA Forestry Accessories

Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocketnose guide bar,
