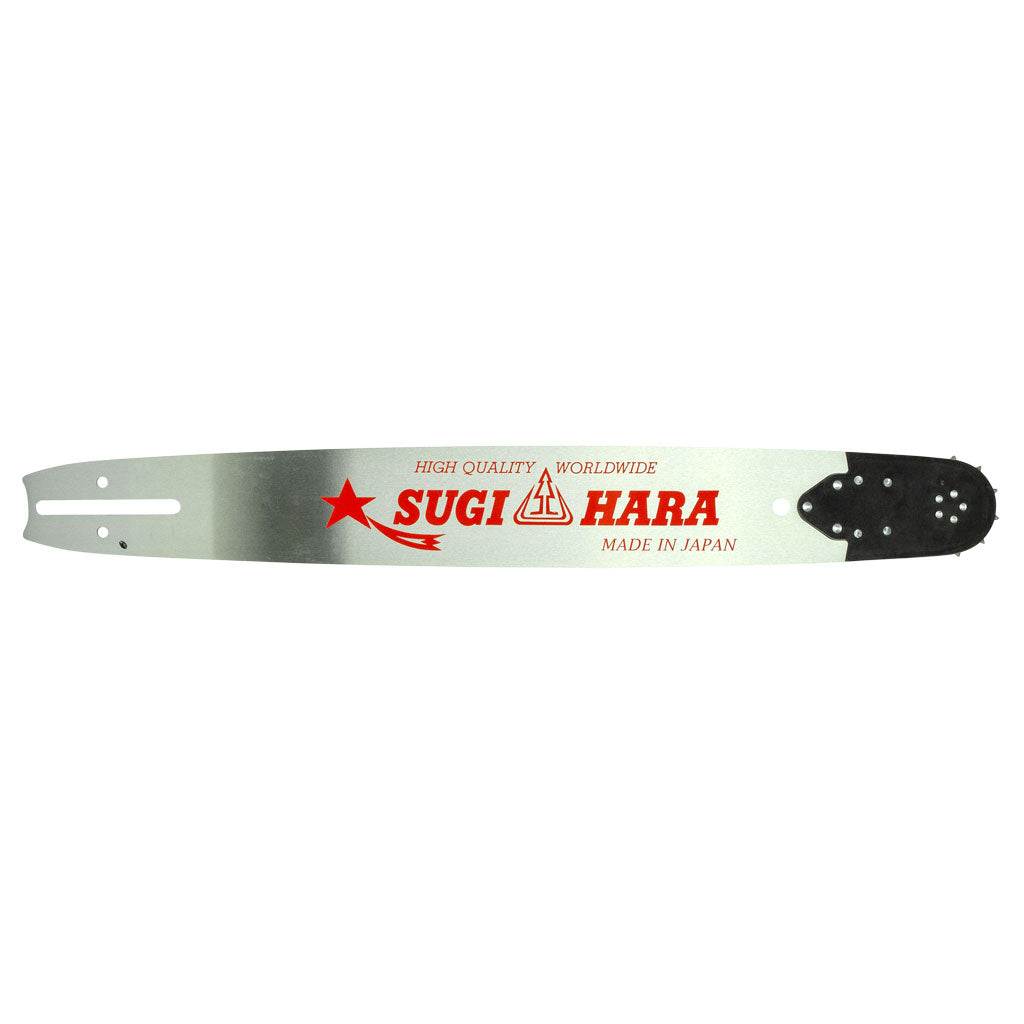

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 24 #43 CB

PROKUT PLATINUM SUGIHARA 24" x 3/8" x .063" x *82DL, CB Mount, Solid ProfessionalReplaceable Sprocket Nose Guide Bar - Made In Japan

Oregon 243RNDD009Sugihara - Diatop VT3T-3Q61-A

Oregon 243RNDD009Sugihara - Diatop VT3T-3Q61-AProfessional premium quality, solid, replaceable sprocket nose guide bar.Manufactured from a single piece of steel, featuring superior durability andstiffness characteristics.High durability sprocket nose.Polished lacquered finish.Nose fastens with three rivets, and is securely held by wide and strong overlappingears.The long sprocket nose takes most of the abuse, and minimizes wear to the barsbody.Super tough steel, heat treated up to 4 times on different parts of the guide bar,provides superior bar-body strength and tough rails with excellent resistance towear and chipping.PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.Made in Japan.All PROKUT guide bars are reversible for longer life.

Professional premium quality, solid, replaceable sprocket nose guide bar.Manufactured from a single piece of steel, featuring superior durability andstiffness characteristics.High durability sprocket nose.Polished lacquered finish.Nose fastens with three rivets, and is securely held by wide and strong overlappingears.The long sprocket nose takes most of the abuse, and minimizes wear to the barsbody.Super tough steel, heat treated up to 4 times on different parts of the guide bar,provides superior bar-body strength and tough rails with excellent resistance towear and chipping.PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.Made in Japan.All PROKUT guide bars are reversible for longer life.

24"

24"

60 cm

3/8"

PROKUT Platinum Sugihara Series, Solid Professional Replaceable Sprocket Nose Guide Bar

43S / Semi-Chisel or 43F / Full-Chisel

CB

.063"

*82 (*please refer to notes after each fitment application)

11 Tooth sprocket nose

50 cc to 100 cc (3.0 to 6.0 cu. in.)PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL model chainsaws. *Please notethese models were fitted with 84 drive link chains from new. This guide bar uses an82 drive link chain and so the existing chain will require shortening to use thisPROKUT Platinum Sugihara guide bar on these applications.

*Dolmar PS-6400, PS-6400 H, PS-6400 HS, PS-6400 W, PS-7300, PS-7300 H, PS-7300 HS,PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL model chainsaws.drive link chains from new. This guide bar uses an 82 drive link chain and so theexisting chain will require shortening to use this PROKUT Platinum Sugihara guidebar on these applications.

*Please note these models were fitted with 84 drive link chains from new. Thisguide bar uses an 82 drive link chain and so the existing chain will requireshortening to use this PROKUT Platinum Sugihara guide bar on these applications.

*Husqvarna 61, 160, 162, 180, 181, 185, 260, 266, 268, 272, 281, 285, 288, 288 XPLITE, 298, 365, 371, 371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385XPG, 385 XPW, 390 XP, 390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW,465 RANCHER, 480, 562 XP, 562 XPG, 570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XPAUTO TUNE, 576 XPG, 576 XPW, 1100, 2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L66, L 70 and L 77 model chainsaws.

*Please note these models were fitted with 84 drive link chains from new. Thisguide bar uses an 82 drive link chain and so the existing chain will requireshortening to use this PROKUT Platinum Sugihara guide bar on these applications.

*Jonsered 670, 670 WEST COAST, 2083, 2083II model chainsaws.

*Please note these models were fitted with 84 drive link chains from new. Thisguide bar uses an 82 drive link chain and so the existing chain will requireshortening to use this PROKUT Platinum Sugihara guide bar on these applications.Note: Please check your saw carefully prior to ordering, some of the above sawmodels were also released fitted with a .404" pitch chain.

*Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000, DCS 9010 FL modelchainsaws.

*Please note these models were fitted with 84 drive link chains from new. Thisguide bar uses an 82 drive link chain and so the existing chain will requireshortening to use this PROKUT Platinum Sugihara guide bar on these applications.Note: Please check your saw carefully prior to ordering, some of these saw modelswere also released fitted with a .404" pitch chain.

*Poulan / Poulan Pro 415, 425, 445, 475 and 505 model chainsaws.

*Please note these models were fitted with 84 drive link chains from new. Thisguide bar uses an 82 drive link chain and so the existing chain will requireshortening to use this PROKUT Platinum Sugihara guide bar on these applications.Note: Please check your saw carefully prior to ordering, some of these saw modelswere also released fitted with a .404" pitch chain.

*Shindaiwa 680, 695, 757, 757C and 757W model chainsaws.

*Please note these models were fitted with 84 drive link chains from new. Thisguide bar uses an 82 drive link chain and so the existing chain will requireshortening to use this PROKUT Platinum Sugihara guide bar on these applications.

*Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 model chainsaws.

*Please note these models were fitted with 84 drive link chains from new. Thisguide bar uses an 82 drive link chain and so the existing chain will requireshortening to use this PROKUT Platinum Sugihara guide bar on these applications.

1

For a standard PROKUT solid professional replaceable sprocket nose guide bar optionuse our part number GAFCB2443RS (Which uses an 84 Drive link chain. Use this guidebar with our semi-chisel chain loop part number GAF43S084DL or our full-chiselchain loop part number GAF43F084DL). For an .058" gauge version of this guide baruse our part number GAFCB2448RSP (Which uses a 84 drive link chain. Use this guidebar with our semi-chisel chain loop part number GAF48S084DL or our full-chiselchain loop part number GAF48F084DL).*This is an 82 drive link guide bar not an 84 drive link guide bar. If your saw waspreviously fitted with an 84 drive link guide bar you will need to shorten thechain. Replaces our 84 drive link guide bar part number OMK243RNDD009.

nose guide bar,

1

For a standard PROKUT solid professional replaceable sprocket nose guide bar optionuse our part number GAFCB2443RS (Which uses an 84 Drive link chain. Use this guidebar with our semi-chisel chain loop part number GAF43S084DL or our full-chiselchain loop part number GAF43F084DL). For an .058" gauge version of this guide baruse our part number GAFCB2448RSP (Which also uses a 82 drive link chain).*This is an 82 drive link guide bar not an 84 drive link guide bar. If your saw waspreviously fitted with an 84 drive link guide bar you will need to shorten thechain. Replaces our 84 drive link guide bar part number OMK243RNDD009.
