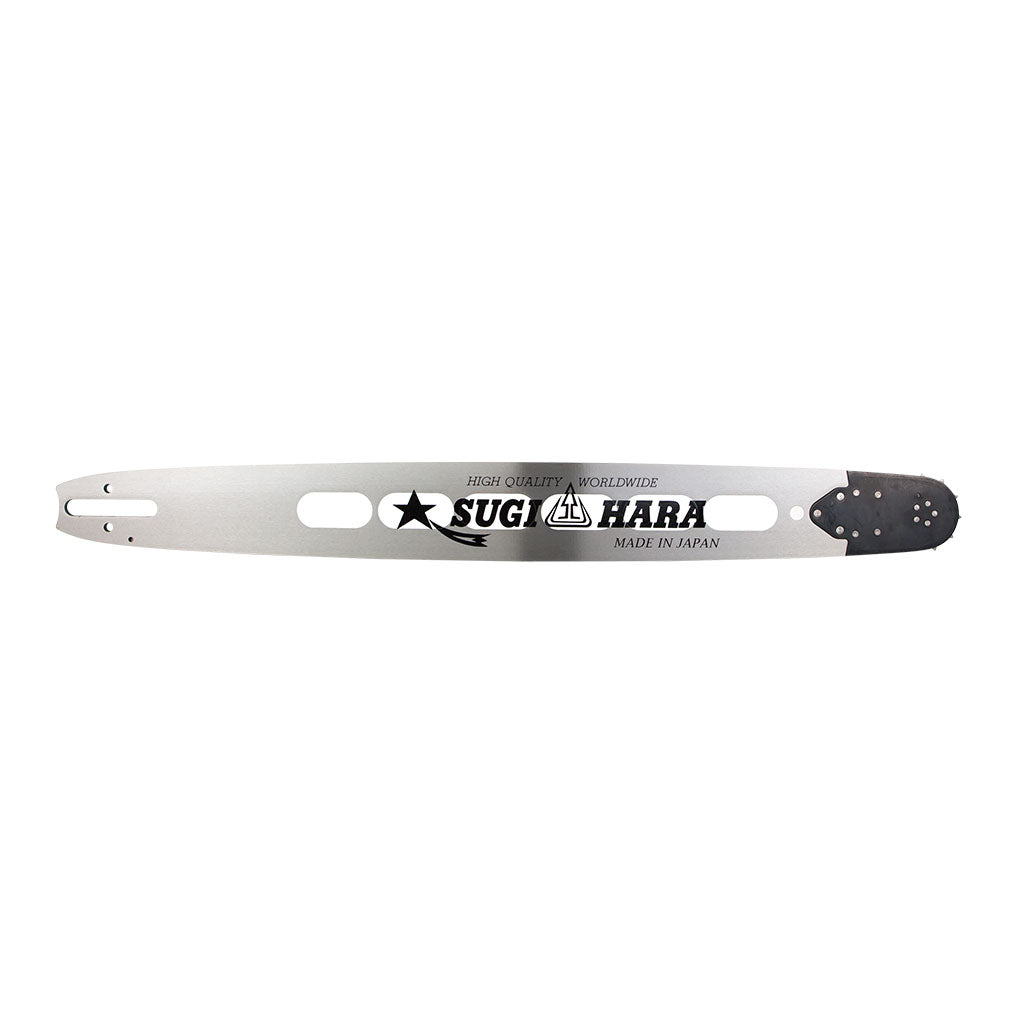

PROKUT PLATINUM SUGI HARA SPROCKET NOSE BAR 25 #43 CD LIGHT WEIGHT BAR

PROKUT PLATINUM SUGIHARA Reduced Weight Pro Bar, 25" x 3/8" x .063" x 84 DL or*85DL, CD Mount - Professional Replaceable Sprocket Nose Guide Bar - Made In Japan

The PROKUT Platinum Sugihara Reduced Weight Professional guide bars aremanufactured In Japan from a single piece of steel. Manufactured the same way asthe Sugihara Red Label Pro Solid bars but with sections removed and filled with arigid, weight reducing resin. One of the best guide bars in the world todaySugihara Reduced Weight Pro guide bars are proving to be an extremely popularversion amongst tree professionals. Sugihara Reduced Weight Pro chainsaw guide barsare sought after for their high performance and light-weight. They are easilyrecognised by the white resin sections and black label. The most striking lookingbar on the market.

Oregon 253RNDD025Sugihara - Diatop ST2U-3Q63-A

PROKUT Platinum Sugihara Reduced Weight Professional guide bars are easilyrecognised by the white resin sections and black label.Manufactured the same way as the Sugihara Red Label Pro Solid bars but withsections removed and filled with a rigid, weight reducing white resin.This guide bar weighs just 1390gProfessional premium quality, reduced weight replaceable sprocket nose guide bar.High durability sprocket nose.Polished lacquered finish.Nose fastens with three rivets, and is securely held by wide and strong overlappingears.The long sprocket nose takes most of the abuse, and minimizes wear to the barsbody.Super tough steel, heat treated up to 4 times on different parts of the guide bar,provides superior bar-body strength and tough rails with excellent resistance towear and chipping.PROKUT Platinum Sugihara guide bar rails measure HRC60 on a hardness scale.Made in Japan.All PROKUT guide bars are reversible for longer life.

25"

63 cm

3/8"

PROKUT Platinum Sugihara Reduced Weight Pro Series - Professional Replaceable Sprocket Nose Guide Bar

43S / Semi-Chisel or 43F / Full-Chisel

CD

.063"

84 (some) or *85 (refer to notes below on Stihl).

11 Tooth sprocket nose

50 cc to 100 cc (3.0 to 6.0 cu. in.)

*Stihl (*refer to notes below), 034, 034 SUPER, 036, 036 Super, 038, 038 Magnum,038 Super Magnum, 039, 041, 042, 044, 044 Magnum, 045, 046, 046 Magnum, 048, 056,056S, 064, 066, 066 Magnum, E15, MS 290, MS 310, MS 311, MS 360, MS 361, MS 361 C,MS 361 C-B, MS 361 C-Q, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS 380, MS390, MS390 Farm Boss, MS 440, MS 440 Magnum, MS 441, MS 441 C, MS 460, MS 460Magnum, MS 461, MS 462, MS 462 C-M, MS 650, MS 660, MS 660 Magnum MS 661, MS661RC-M, MSE 220 C, MSE 250 C.

Please refer to the product notes below, please also check your saw carefully priorto ordering, some of these saw models were also released fitted with a .404”pitch chain.

1

Replaces our part number OMK253RNDD025

*Stihl models fitted with this CD mount guide bar require either an 85 drive linkchain to be fitted for use with the standard 8-tooth rim sprocket (part numberGAF43S085DL for a semi-chisel chain loop or our full chisel chain loop part numberGAF43F085DL) or to keep using the standard 84 drive link chain the sprocket must bechanged to a 7-tooth rim sprocket (our part number GAF35464 for a complete rimsprocket system or part number GAF68120 for the 7-tooth rim only). For all otherbrands and models use with our semi-chisel chain loop part number GAF43S084DL orour full-chisel chain loop part number GAF43F084DL. For a PROKUT PLATINUM SUGIHARAsolid professional replaceable sprocket nose guide bar option use our part numberGAFCD2543RSP. For a standard PROKUT solid professional replaceable sprocket noseguide bar option (which uses 84 DL chain) use our part number GAFCD2443RS.

PROKUT PLATINUM SUGIHARA Reduced Weight Series, GA Forestry Accessories,

Bar, guide bar, reduced weight professional replaceable sprocket nose guide bar,sprocket nose guide bar,
