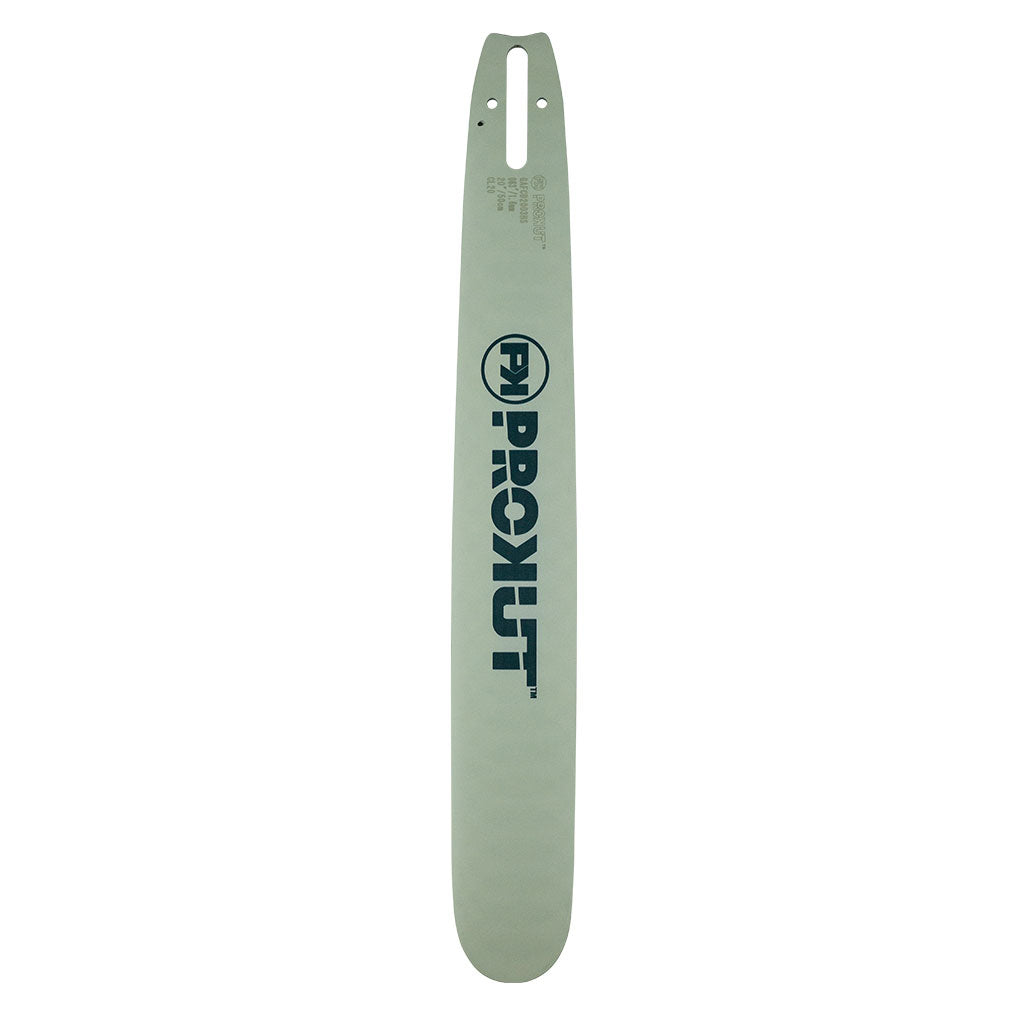

PROKUT SOLID BODY HARD NOSE GUIDE BAR 20" #03 CD

PROKUT 20" x .063" CD Mount, Solid Professional Hard Nose Guide Bar - Suits .325" &3/8" Chain Pitch Applications

OREGON 203ATMD025

OREGON 203ATMD025• Solid body, professional hard nose guide bar• Ultra high wear resistant stellite alloy promotes longer bar nose life• Stellite is laser welded to the nose which provides an optimum bond withoutweakening the bar body, as can occur with a gas welding process• Super tough chrome-moly steel provides superior bar-body strength and toughrails with excellent resistance to wear and chipping• All PROKUT guide bars are reversible for longer life

• Solid body, professional hard nose guide bar• Ultra high wear resistant stellite alloy promotes longer bar nose life• Stellite is laser welded to the nose which provides an optimum bond withoutweakening the bar body, as can occur with a gas welding process• Super tough chrome-moly steel provides superior bar-body strength and toughrails with excellent resistance to wear and chipping• All PROKUT guide bars are reversible for longer life

20"

20"

50 cm

Suits both .325 & 3/8" applications (Hard nose guide bar)

Solid body, hard nose guide bar

* Please refer to the product note below.

CD

.063"

* Please refer to the product note below.

Nil (hard nose guide bar)

38 cc to 62 cc (2.3 to 3.8 cu. in.)STIHL .325" x .063" x 81 drive link applications including selected 024, 024 SUPER,026, 026 C, 026P, 026 PRO, 028, 028 SUPER, 029, 030, 031, 032, 034, 034 SUPER, 036,036P, 036 QS, 039, FARM BOSS, MS 260, MS 260 C, MS 260 PRO, MS 261, MS 261 C-Q, MS270, MS 270 C-B, MS 270 C, MS 270 C-QS, MS 271, MS 280, MS 280 C, MS 280 C-BQ, MS280 C-QS, MS 290, MS 291, MS 291 C-BEQ, MS 360, MS 360 C, MS 360 PRO and MS 360 Q-Schainsaw models when fitted with a .325" x .063" x 81 drive link chain. (For theabove .325" pitch applications use with our semi-chisel chain loop part numberGAF33S081DL or our full-chisel chain loop part number GAF33F081DL). Note: Pleasecheck your saw carefully prior to ordering, some of the above saw models were alsoreleased fitted with a 3/8" pitch chain.

STIHL 3/8" x .063 x 72 drive link applications including selected 034, 034 SUPER,STIHL .325" x .063" x 81 drive link applications including selected 024, 024 SUPER,026, 026 C, 026P, 026 PRO, 028, 028 SUPER, 029, 030, 031, 032, 034, 034 SUPER, 036,036P, 036 QS, 039, FARM BOSS, MS 260, MS 260 C, MS 260 PRO, MS 261, MS 261 C-Q, MS270, MS 270 C-B, MS 270 C, MS 270 C-QS, MS 271, MS 280, MS 280 C, MS 280 C-BQ, MS280 C-QS, MS 290, MS 291, MS 291 C-BEQ, MS 360, MS 360 C, MS 360 PRO and MS 360 Q-Schainsaw models when fitted with a .325" x .063" x 81 drive link chain. (For theabove .325" pitch applications use with our semi-chisel chain loop part numberGAF33S081DL or our full-chisel chain loop part number GAF33F081DL). Note: Pleasecheck your saw carefully prior to ordering, some of the above saw models were alsoreleased fitted with a 3/8" pitch chain.released fitted with either a .325" or a .404" pitch chain.

STIHL 3/8" x .063 x 72 drive link applications including selected 034, 034 SUPER,036, 036 SUPER, 038, 038 MAGNUM, 038 SUPER MAGNUM, 039, 041, 042, 044, 044M, 045,046, 046M, 048, 056, 056S, 064, 066, 066 MAGNUM, E 15, E 20, E 220, MS 290, MS 310FARM BOSS, MS 311, MS 360, MS 361, MS 362, MS 362 C-M, MS 362 C-MQ, MS 362 C-Q, MS380, MS 390, MS 390 FARM BOSS, MS 391, MS 440, MS 440 MAGNUM, MS 441, MS 441C, MS441 C-M, MS 441 C-MQ, MS 441 R C-M, MS 460, MS 460 MAGNUM, MS 461, MS 650, MS 660,MS 660M, MS 660 MAGNUM, MS 661 C-M, MS 661 RC-M, MSE 220, MSE 220C, MSE 250 Cchainsaw models when fitted with a 3/8" x .063" x 72 drive link chain. (For theabove 3/8" pitch applications use with our semi-chisel chain loop part numberGAF43S072DL or our full-chisel chain loop part number GAF43F072DL). Note: Pleasecheck your saw carefully prior to ordering, some of the above saw models were alsoreleased fitted with either a .325" or a .404" pitch chain.

1

*This hard nose guide bar accepts multiple chain pitches and drive link counts,please refer to each description grouping carefully prior to ordering, for thisvarying information.Please Note: Replaces our part number OMK203ATMD025

1

*This hard nose guide bar accepts multiple chain pitches and drive link counts,please refer to each description grouping carefully prior to ordering, for thisvarying information.Please Note: Replaces our part number OMK203ATMD025
