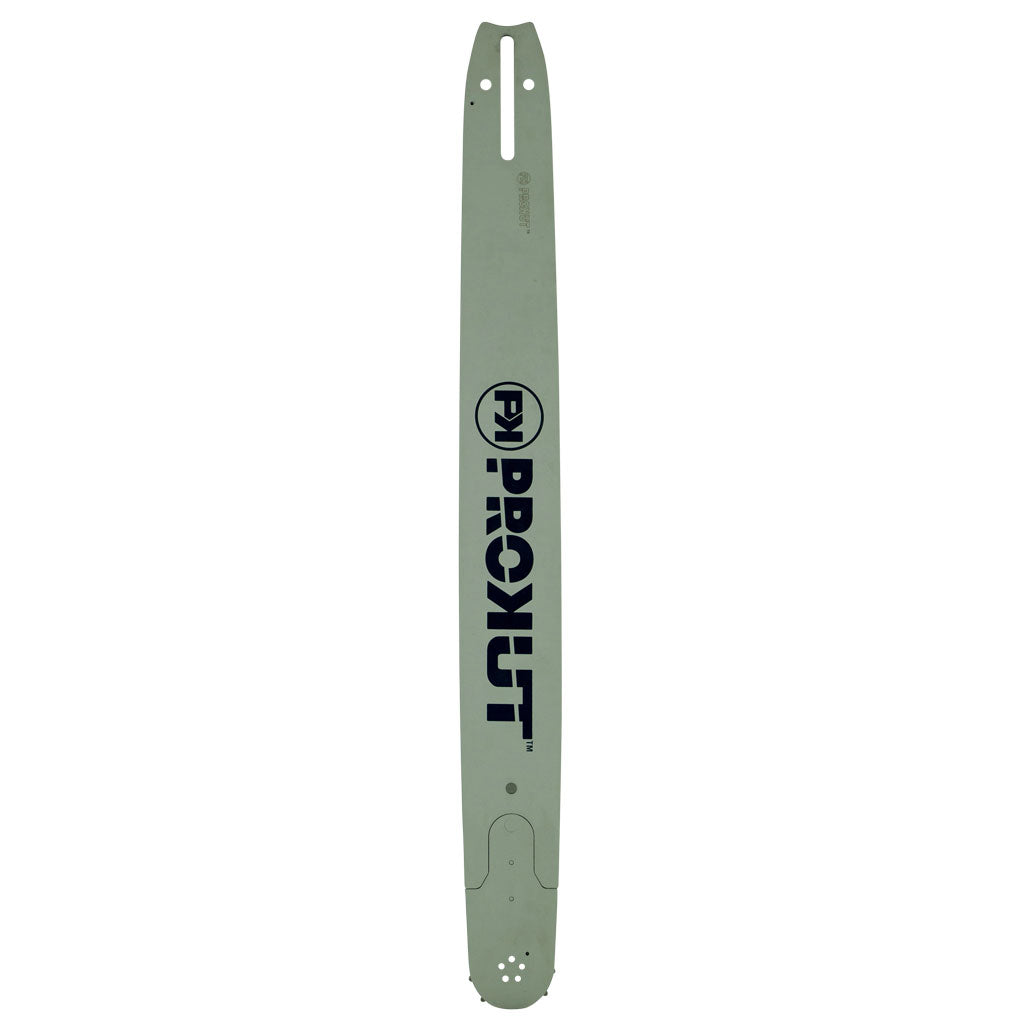

PROKUT SPROCKET NOSE GUIDE BAR 24 #40 CG

PROKUT 24" x 3/8" x .050" x 81 DL, CG Mount, Solid Professional ReplaceableSprocket Nose Guide Bar

OREGON 240RNDD176

OREGON 240RNDD176• Solid professional replaceable sprocket nose guide bar• Nose fastens with a single rivet, and is securely held by wide and strongoverlapping ears• The long sprocket nose takes most of the abuse, and minimizes wear to the barsbody• Super tough chrome-moly steel provides superior bar-body strength and toughrails with excellent resistance to wear and chipping• All PROKUT guide bars are reversible for longer life

• Solid professional replaceable sprocket nose guide bar• Nose fastens with a single rivet, and is securely held by wide and strongoverlapping ears• The long sprocket nose takes most of the abuse, and minimizes wear to the barsbody• Super tough chrome-moly steel provides superior bar-body strength and toughrails with excellent resistance to wear and chipping• All PROKUT guide bars are reversible for longer life

24"

24"

60 cm

3/8"

Solid Professional Replaceable Sprocket Nose Guide Bar

40S / Semi-Chisel or 40F / Full-Chisel

CG

.050"

81

11 Tooth sprocket nose

50 cc to 100 cc (3.0 to 6.0 cu. in.)CS-600P, CS-601, CS-602, CST-610, CS-610T, CS-650, CS-660, CS-670, CS-680, CS-701,CS-702, CS-706, CS-750, CS-6700, CS-6702, CS-8000, CS-8001 and CS8002 models.

Echo CS-60, CS-60S, CS-451, CS-452, CS-500, CS-501EVL, CS-510EVL, CS-550, CS-590,CS-600P, CS-601, CS-602, CST-610, CS-610T, CS-650, CS-660, CS-670, CS-680, CS-701,CS-702, CS-706, CS-750, CS-6700, CS-6702, CS-8000, CS-8001 and CS8002 models.

McCulloch 70, 80, 81, 560, 620, CP 55, CP70, CP70L. Eager Beaver 3.7. Double Eagle50, 80. Mac 10 Series: 1-10, 2-10, 3-10, 4-10, 5-10, 6-10, 7-10, 10-10, 10-10A.MacCat Super 18AV. ProMac Series: ProMac 55, ProMac 60, ProMac 555, ProMac 570,ProMac 605 (PM605), ProMac 610, ProMac 650, ProMac 655, ProMac 700 (PM700), ProMac800, ProMac 805, ProMac 850, ProMac 1000, ProMac 5700, ProMac 8200. Silver Eagle3420, Silver Eagle 3720. Super Pro Series: Super Pro 60 (SP60), Super Pro 70(SP70), Super Pro 80 (SP80), Super Pro 81 (SP81). Timber Bear (earlier models).Titan 50, Titan 57 and Titan 70 models.

John Deere 50AV, 50V, 51SV, 55EV, 55V, 55SV, 60V, 65, 65EV, 65SV, 66SV, 70V, 80EVand 800V models.

McCulloch 70, 80, 81, 560, 620, CP 55, CP70, CP70L. Eager Beaver 3.7. Double Eagle50, 80. Mac 10 Series: 1-10, 2-10, 3-10, 4-10, 5-10, 6-10, 7-10, 10-10, 10-10A.MacCat Super 18AV. ProMac Series: ProMac 55, ProMac 60, ProMac 555, ProMac 570,ProMac 605 (PM605), ProMac 610, ProMac 650, ProMac 655, ProMac 700 (PM700), ProMac800, ProMac 805, ProMac 850, ProMac 1000, ProMac 5700, ProMac 8200. Silver Eagle3420, Silver Eagle 3720. Super Pro Series: Super Pro 60 (SP60), Super Pro 70(SP70), Super Pro 80 (SP80), Super Pro 81 (SP81). Timber Bear (earlier models).Titan 50, Titan 57 and Titan 70 models.

Poulan / Poulan Pro 203, 245, 306, 306A, 360, 361, 375, 385, 395, 400, 446, 450,3400, 3700, 3800, 3900, 4000, 4200, 4400, 4900, 5000, 5200, 5400, 5500, 6000 and6700 models.

Redmax G621AVS models.

Tanaka ECS-505, ECS-506, ECS-650 and ECS-655 models.

Zenoah G621 and G621AVS models.

1

Use with our semi-chisel chain loop part number GAF40S081DL or our full-chiselchain loop part number GAF40F081DL. Replaces our part number OMK240RNDD176

nose guide bar,

1

Use with our semi-chisel chain loop part number GAF40S081DL or our full-chiselchain loop part number GAF40F081DL. Replaces our part number OMK240RNDD176

PROKUT, GA Forestry Accessories

Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocketnose guide bar,
