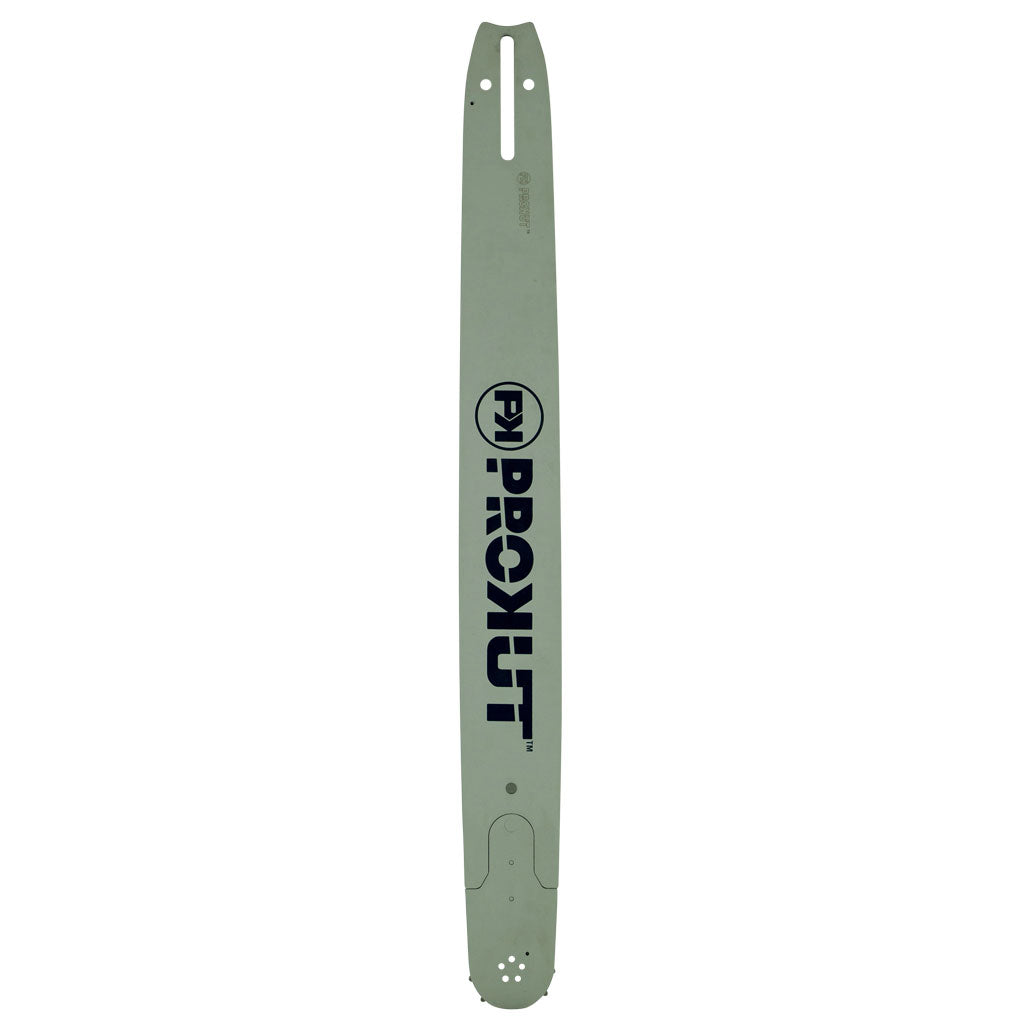

PROKUT™ 28" x 3/8" x .063" x 92 DL Or 93 DL, CB Mount, Solid ProfessionalReplaceable Sprocket Nose Guide Bar
OREGON® 283RNDD009
OREGON® 283RNDD009• Nose fastens with a single rivet, and is securely held by wide and strongoverlapping ears• The long sprocket nose takes most of the abuse, and minimizes wear to the barsbody• Super tough chrome-moly steel provides superior bar-body strength and toughrails with excellent resistance to wear and chipping• All PROKUT™ guide bars are reversible for longer life
• Solid professional replaceable sprocket nose guide bar• Nose fastens with a single rivet, and is securely held by wide and strongoverlapping ears• The long sprocket nose takes most of the abuse, and minimizes wear to the barsbody• Super tough chrome-moly steel provides superior bar-body strength and toughrails with excellent resistance to wear and chipping• All PROKUT™ guide bars are reversible for longer life
28"
28"
70 cm
3/8"
Solid Professional Replaceable Sprocket Nose Guide Bar
43S / Semi-Chisel or 43F / Full-Chisel
CB
.063"
92 or 93 (as detailed above)
11 Tooth sprocket nose
50 cc to 100 cc (3.0 to 6.0 cu. in.)PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL models. (These models use a93 drive link chain).
Dolmar PS-6400, PS-6400 H, PS-6400 HS, PS-6400 W, PS-7300, PS-7300 H, PS-7300 HS,PS-7300 W, PS-7310, PS-7310 H, PS-7900, PS-7900 H, PS-7900 HS, PS-7900 W, PS-7910,PS-7910 H, PS-7910 W, PS-9000, PS-9010 and PS-9010 FL models. (These models use a93 drive link chain).2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L 66, L 70 and L 77 models. (Thesemodels use a 92 drive link chain).
Husqvarna 180, 181, 185, 266, 268, 272, 281, 285, 288, 288 XP LITE, 298, 365, 371,371 XP, 372, 372 XP, 372 XPG, 372 XPW, 380, 385, 385 XP, 385 XPG, 385 XPW, 390 XP,390 XPG, 390 XPW, 394, 394 XP, 395, 395 XP, 395 XPG, 395 XPW, 480, 562 XP, 562 XPG,570, 575 XP, 575 XPG, 575 XPW, 576 XP, 576 XP AUTO TUNE, 576 XPG, 576 XPW, 1100,2100, 2101, 3120, 3120 XP, JUNGLE 3120, L 65, L 66, L 70 and L 77 models. (Thesemodels use a 92 drive link chain).
Jonsered 670, 670 WEST COAST, 2083, 2083II, 2094 and 2095 models (These models usea 92 drive link chain). Note: Please check your saw carefully prior to ordering,some of the above saw models were also released fitted with a .404" pitch chain.
Makita DCS 6401, DCS 6421, DCS 7301, DCS 7901, DCS 9000, DCS 9010 FL. Note: Pleasecheck your saw carefully prior to ordering, some of these saw models were alsoreleased fitted with a .404" pitch chain. (These models use a 93 drive link chain).
Poulan / Poulan Pro 415, 425, 445, 475 and 505. (These models use a 93 drive linkchain). Note: Please check your saw carefully prior to ordering, some of these sawmodels were also released fitted with a .404" pitch chain.
Shindaiwa 680, 695, 757, 757C and 757W models. (These models use a 93 drive linkchain).
Solo 603, 662, 665, 667, 667SP, 670, 675, 680, 681, 690 and 694 models. (Thesemodels use a 93 drive link chain).
1
Use with our semi-chisel chain loop part number GAF43S092DL or our full-chiselchain loop part number GAF43F092DL for 92 drive link applications. Use with oursemi-chisel chain loop part number GAF43S093DL or our full-chisel chain loop partnumber GAF43F093DL for 93 drive link applications.. For an .058" gauge version ofthis guide bar use our part number GAFCB2848RS. Replaces our part numberOMK283RNDD009
nose guide bar,
1
Use with our semi-chisel chain loop part number GAF43S092DL or our full-chiselchain loop part number GAF43F092DL for 92 drive link applications. Use with oursemi-chisel chain loop part number GAF43S093DL or our full-chisel chain loop partnumber GAF43F093DL for 93 drive link applications.. For an .058" gauge version ofthis guide bar use our part number GAFCB2848RS. Replaces our part numberOMK283RNDD009
PROKUT™, GA Forestry Accessories™
Bar, guide bar, solid professional replaceable sprocket nose guide bar, sprocketnose guide bar,
