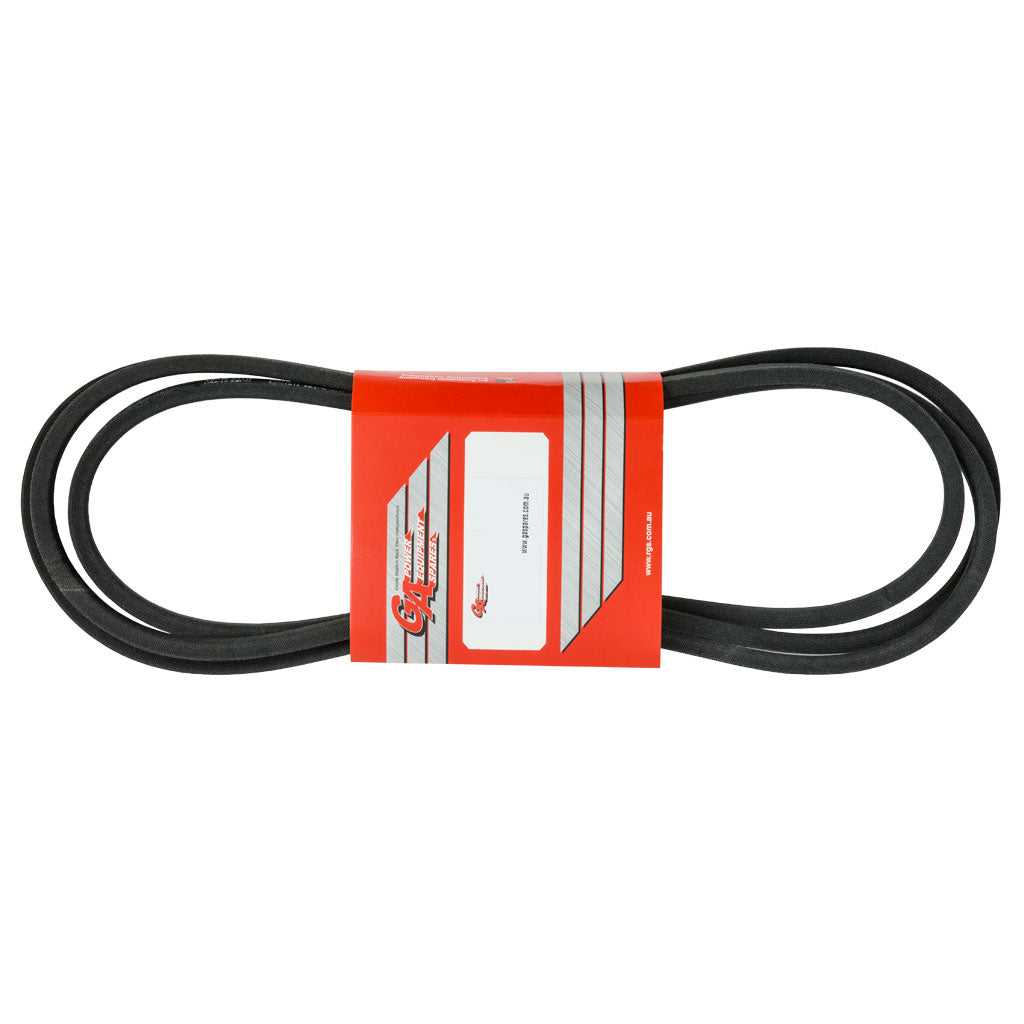

ROVER & TROY BILT TRANSMISSION BELT

Non-Genuine Rover Rancher 38", 42" & 46" Cut, Troy Bilt Horse XP 46" CutTransmission Belt

Rover 754-04252, 954-04252Troy Bilt 754-04252, 954-04252

38", 42", 46" Cut

965 mm, 1067 mm, 1168 mm Cut

96.5 cm, 106.7 cm, 116.8 cm Cut

82.01" I.C

2083.05 mm I.C

84.01" O.C

2134 mm O.C

0.511"

13 mm

38" (965 mm) cut Rover Rancher 547/38 (model 13A879WF333 years 2016 to 2019)ride-on lawn mower models as the transmission belt.

Transmission Drive Belt (0.511" Wide x 84.01" O.C)

For the above model use in conjunction with our cutter deck belt part numberBEL954-04062 (which replaces OEM's: 754-04062 & 954-04062).

42" (1067 mm) cut Rover Rancher 547/42 (models 13AX79WS333 year 2016 and13A879WS333 years 2016 to 2020) ride-on lawn mower models as the transmission belt.

Transmission Drive Belt (0.511" Wide x 84.01" O.C)

For the above models use in conjunction with our cutter deck belt part numberBEL954-04060 (which replaces OEM's: 754-04060 & 954-04060).

46" (1168 mm) cut Rover (model 13A879WT333 year 2015) ride-on lawn mower models asthe transmission belt.

For the above model use in conjunction with our cutter deck belt part numberBEL68103 (which replaces OEM's: 754-04219 & 954-04219).

46" (1168 mm) cut Troy Bilt Horse XP (models 13WX79KT011 year 2011 and 13AX79KT309years 2012 to 2016) ride-on lawn mower models as the transmission belt.

For the above models use in conjunction with our cutter deck belt part numberBEL68103 (which replaces OEM's: 754-04219 & 954-04219).

1

Our premium quality belts are manufactured with high-strength Aramid fibre cordsfor heavy duty applications and severe duty cycles. These belts have a drier coverfabric that is designed to increase flexibility and withstand severe clutchingaction, bending or twisting, heavy loads and backside idler applications. Oil andheat resistant. Aramid Fibre Cord is the family name of nylons that include Kevlar.
